General Information
Brand
Klein Tools
Part Number
660KIT2
Product Type
Impact Rated Sockets
Application
Pole Hardware Installation and Removal
Number of Pieces
8
What's Included

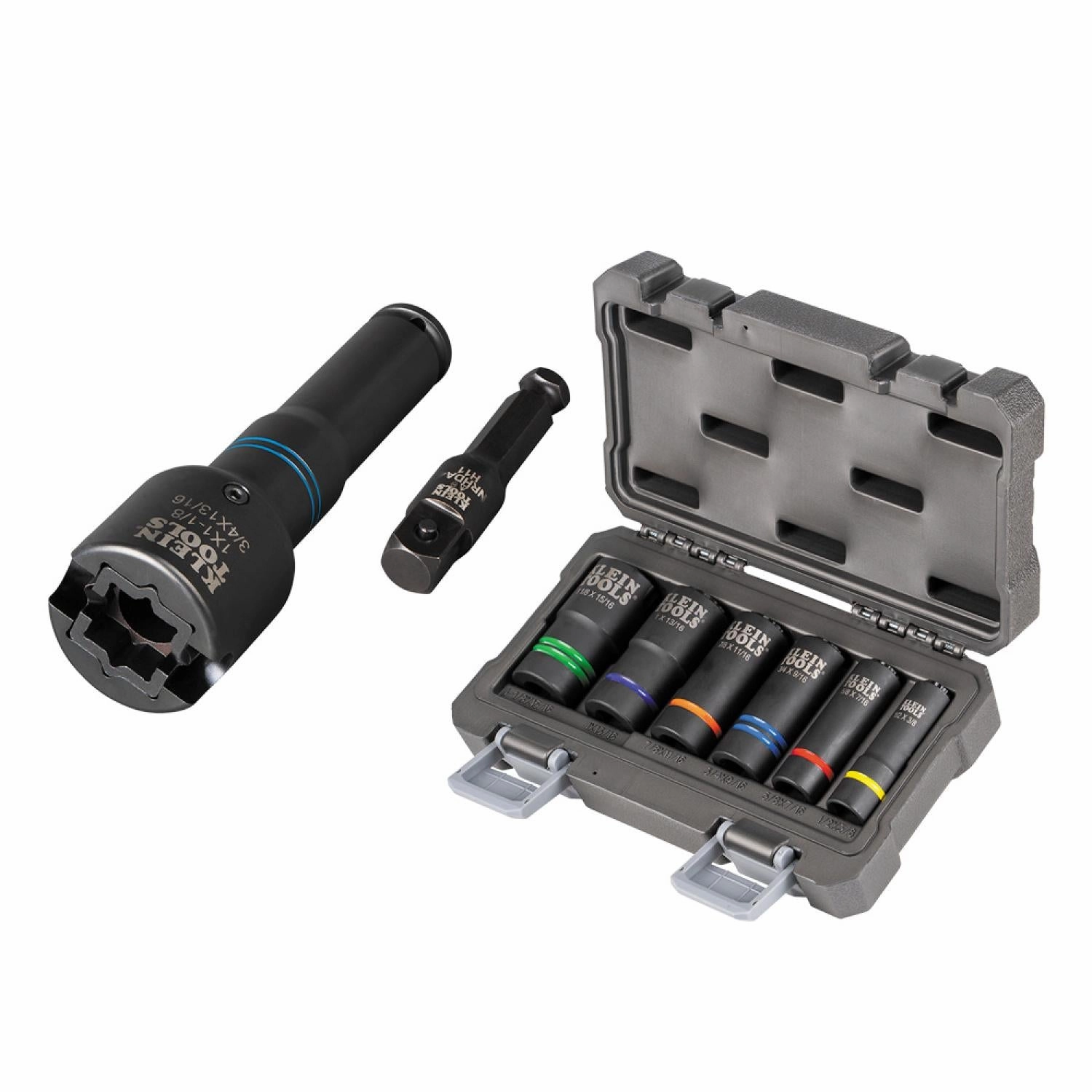

NRHD4 6-in-1 Square Impact Socket; 66090 2-in-1 Slotted Impact Socket Set, 12-Point, 6-Piece
Packaging
Retail
UPC
092644681493
California Residents
Physical Characteristics
Length
6.94'' (17.6 cm)
Width
7.06'' (17.9 cm)
Height
11.19'' (28.4 cm)
Weight
2.79 kg
6.16 lb
Color
Black / Color-Coded
Finish
Black Oxide Finish
Material
4140 Steel
Durability
ASME B107.2
Details
Tip Type
Slotted Socket
Size
NRHD4:
Socket Sizes: 3/4'', 13/16'', 1'', 1-1/8'' Square
Number of Points: 4
Drive Size: 7/16'' Hex and 1/2'' Square

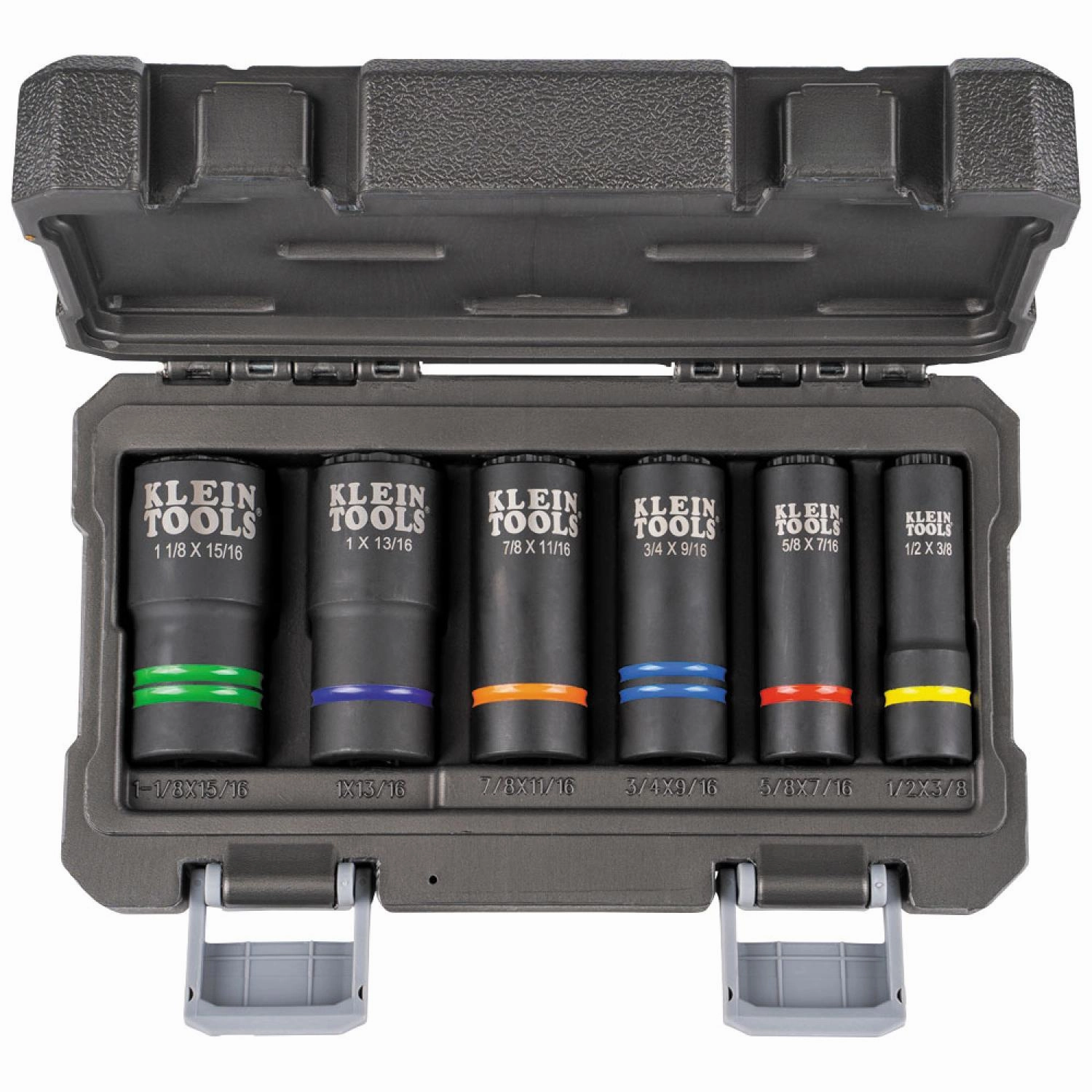

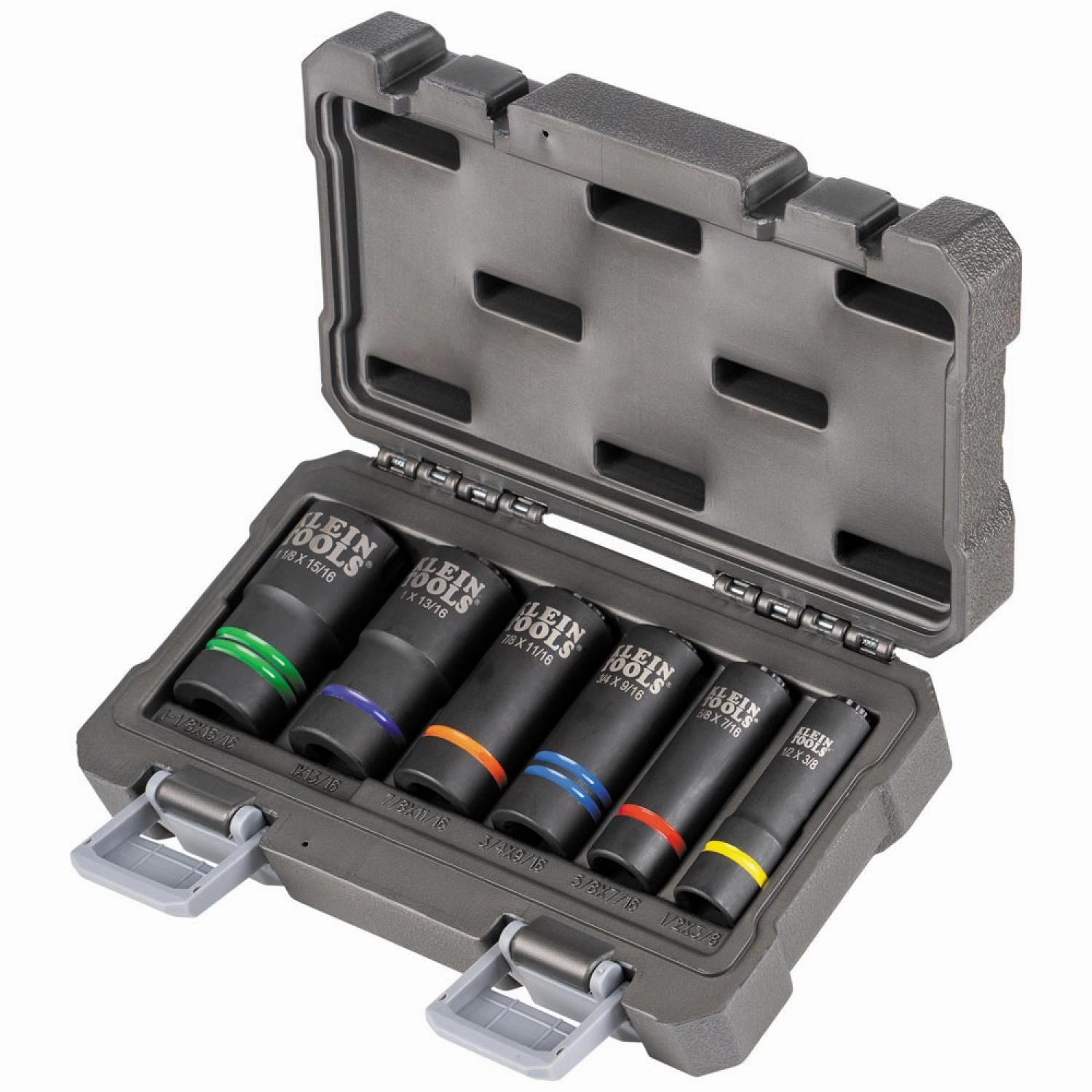

66090:
Socket Sizes: 1-1/8 x 15/16'', 1 x 13/16'', 7/8 x 11/16'', 3/4 x 9/16'', 5/8 x 7/16'', 1/2 x 3/8''
Number of Points: 12
Drive Size: 1/2"
Socket Sizes: 3/4'', 13/16'', 1'', 1-1/8'' Square
Number of Points: 4
Drive Size: 7/16'' Hex and 1/2'' Square
66090:
Socket Sizes: 1-1/8 x 15/16'', 1 x 13/16'', 7/8 x 11/16'', 3/4 x 9/16'', 5/8 x 7/16'', 1/2 x 3/8''
Number of Points: 12
Drive Size: 1/2"
Drive Connector Size
1/2" - 7/16"
Features
NRHD4:
Single-ended impact socket with hands free adjustment between socket sizes
Two coaxial spring-loaded sockets in one tool
Works on 1/2-Inch, 5/8-Inch and 3/4-Inch pole hardware
13/16-Inch diameter, 6-Inch (15 cm) long hollow shaft allows use on long threaded bolts
Cross hole design to prevent unintentional separation of adapter and socket
Color coded with double lines to identify size and slotted feature

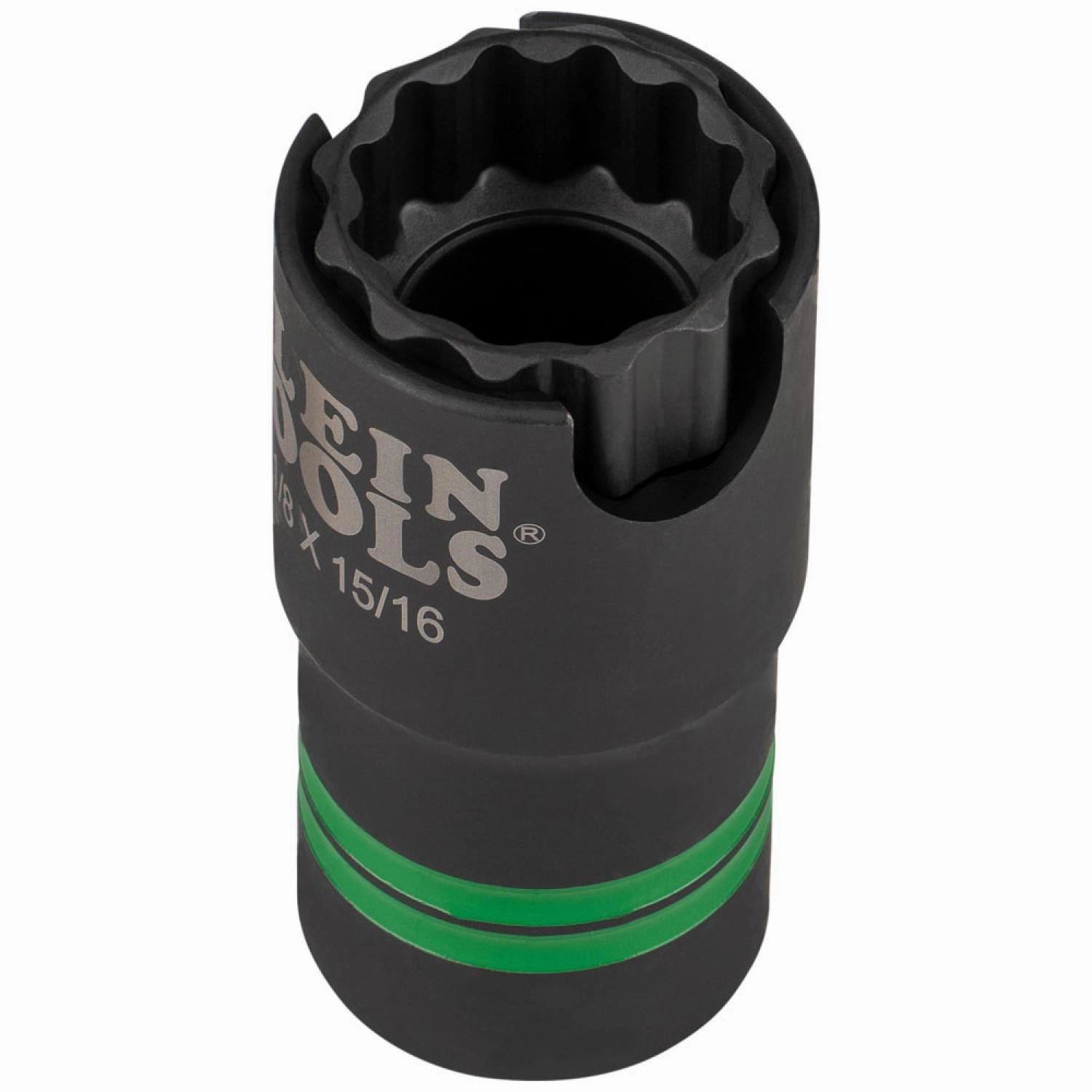

66090:
Single-ended impact socket wrenches with hands free adjustment between socket sizes
Two coaxial spring loaded sockets in one tool
Sockets have a high-torque, 12-Point design making it easier to position on fasteners

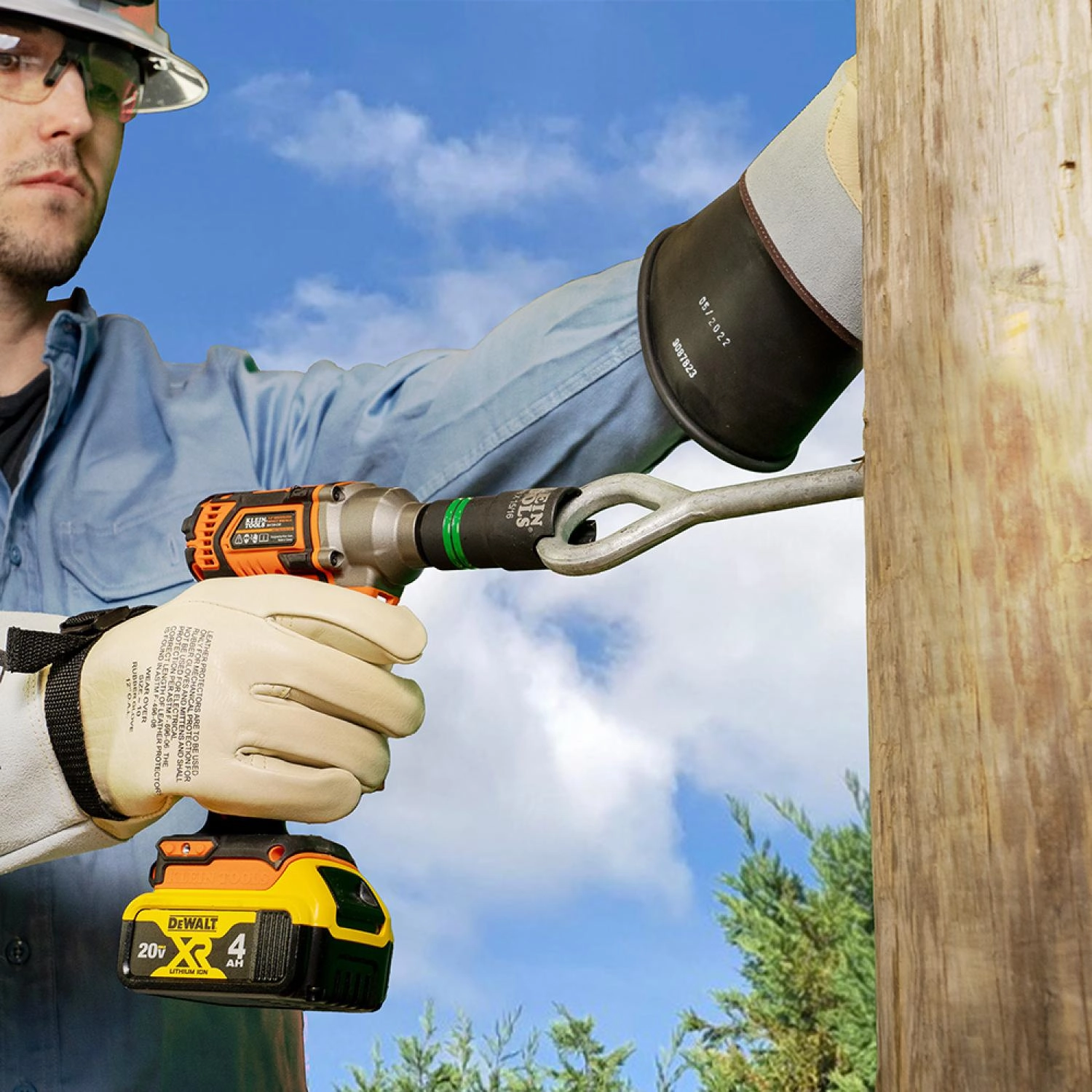

Deep socket with a 1/2-Inch drive works great for pole hardware installation and removal
Cross hole design helps maintain socket connection to adapter or impact wrench
Engineered for use with impact wrenches including Klein's 1/2-Inch Compact Impact Wrench (Cat. Nos. BAT20-CW, BAT20-CW1)
Sockets are color coded to quickly identify slotted and sizes
Single-ended impact socket with hands free adjustment between socket sizes
Two coaxial spring-loaded sockets in one tool
Works on 1/2-Inch, 5/8-Inch and 3/4-Inch pole hardware
13/16-Inch diameter, 6-Inch (15 cm) long hollow shaft allows use on long threaded bolts
Cross hole design to prevent unintentional separation of adapter and socket
Color coded with double lines to identify size and slotted feature
66090:
Single-ended impact socket wrenches with hands free adjustment between socket sizes
Two coaxial spring loaded sockets in one tool
Sockets have a high-torque, 12-Point design making it easier to position on fasteners
Deep socket with a 1/2-Inch drive works great for pole hardware installation and removal
Cross hole design helps maintain socket connection to adapter or impact wrench
Engineered for use with impact wrenches including Klein's 1/2-Inch Compact Impact Wrench (Cat. Nos. BAT20-CW, BAT20-CW1)
Sockets are color coded to quickly identify slotted and sizes
