General Information
Brand
Klein Tools
Part Number
CL800
Product Type
Meter
Application
Measures Current
What's Included
Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Packaging
Retail
UPC
092644690167
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Length
9.09'' (231.0 mm)
Width
3.81'' (96.9 mm)
Height
1.55'' (39.3 mm)
Weight
0.35 kg
0.78 lb
Details
Functions
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes. Thermocouple probe measures temperature.
Features
Automatically ranging true mean squared (TRMS) technology for increased accuracy
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Thermocouple probe measures temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2m) drop
Low battery indicator and easily accessible battery compartment
Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
Operating altitude to 6562-Foot (2000m)

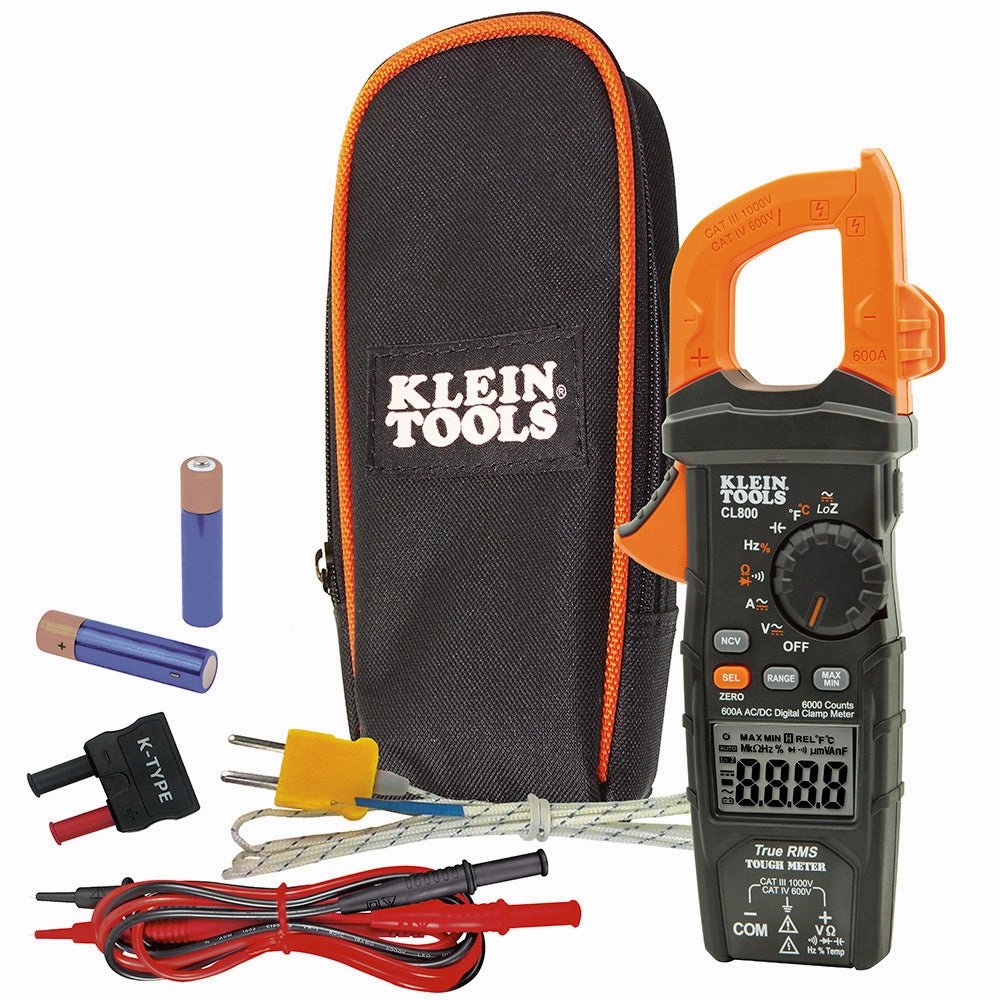

Includes carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Test leads measure AC/DC voltage, resistance, continuity, frequency and capacitance and tests diodes
Thermocouple probe measures temperature
Low Impedance (LoZ) mode for identifying and eliminating ghost or stray voltages
CAT IV 600V, CAT III 1000V, Class 2, Double insulation safety rating
Built to withstand a 6.6-Foot (2m) drop
Low battery indicator and easily accessible battery compartment
Operating temp: 32-degree F to 104-degree F (0-degree C to 40-degree C)
Operating altitude to 6562-Foot (2000m)
Includes carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
AC Voltage
1000V
DC Voltage
1000V
Current
600A AC; 600A DC
Voltage
1000V AC; 1000V DC
Capacitance
6000F
Resistance (Ohms)
60MO
Frequency
1Hz - 500 KHz
Batteries
2 x AAA
Display Type
6000 Count LCD
Temperature Range
-14 - 1000F (-26 - 538C)
