Physical Characteristics
Color
Black & Orange
Material
ABS/Electronics
Length
9.06'' (2.3 cm)
Width
3.47'' (8.8 cm)
Height
1.65'' (4.2 cm)
Weight
0.37 kg
0.81 lb
Details
Measurement Standard
CAT IV 600V, CAT III 1000V, Class 2, Double Insulation, CE, UKCA
Batteries
3 x AAA
Display Type
Transflective Reverse-Contrast with 6000 Count LCD; 1.5'' x 1.0'' (3.83 x 2.6 cm)
Temperature Range
40 to 1832 F (-40 to 1000 C)
Functions
AC/DC/ Voltage, AC/DC Current, Resistance, DC Micro Amps, Audible Continuity, Temperature, Low Impedance, Non-Contact Voltage Testing, Diode Test, Capacitance, Frequency/Duty Cycle, Inrush, Min/Max Value, Rel/Zero, Data Hold Capability
Features

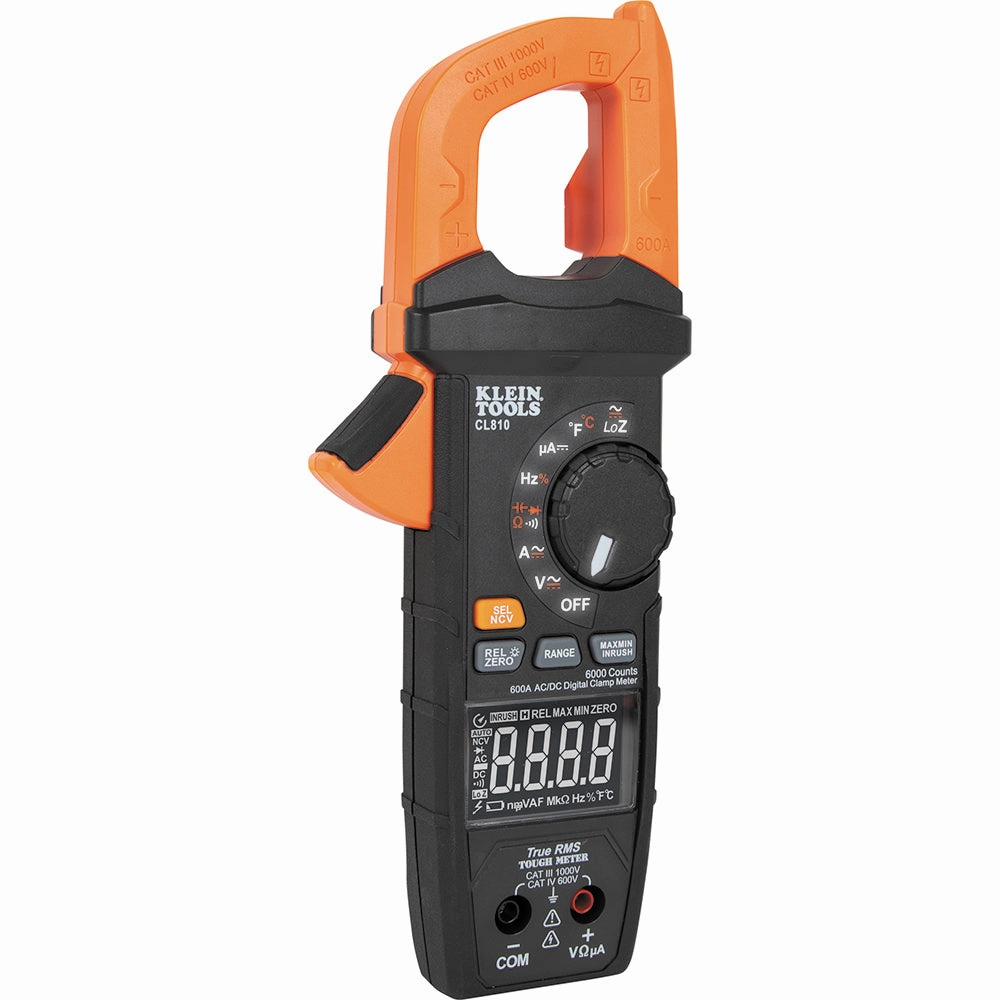

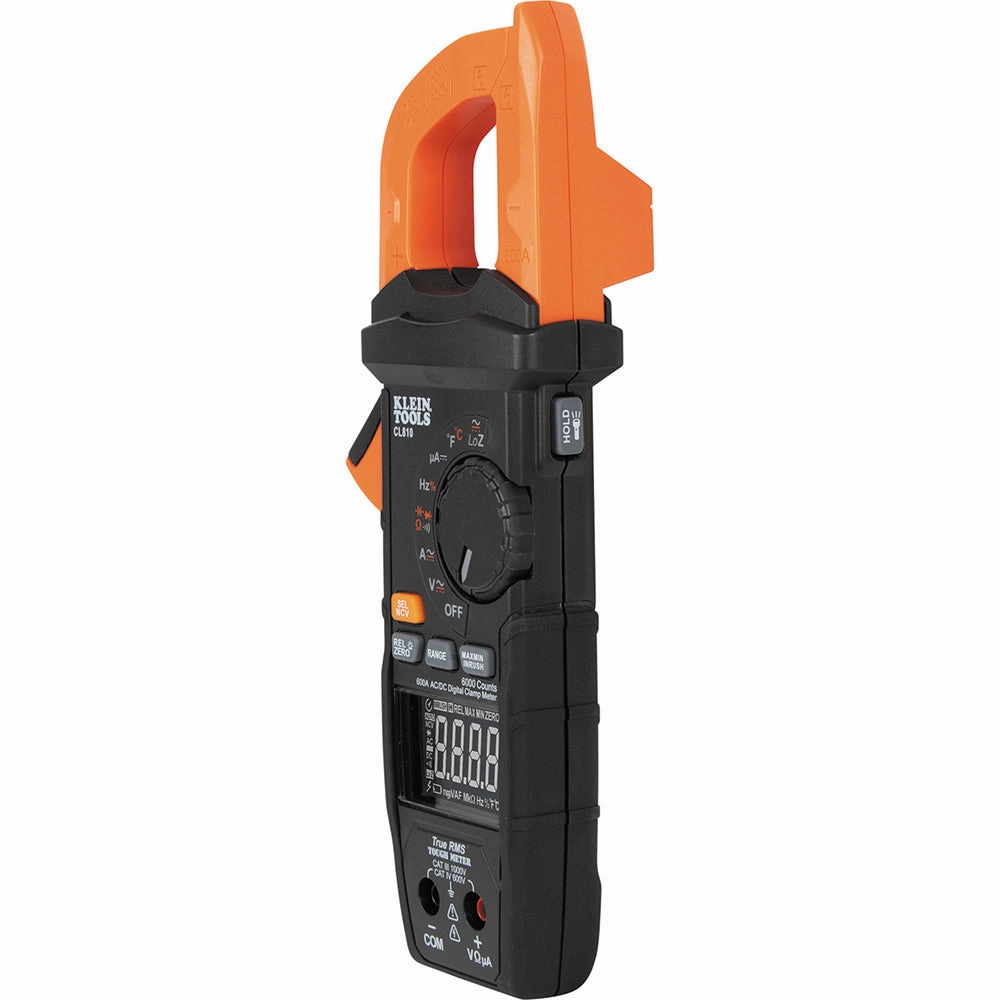

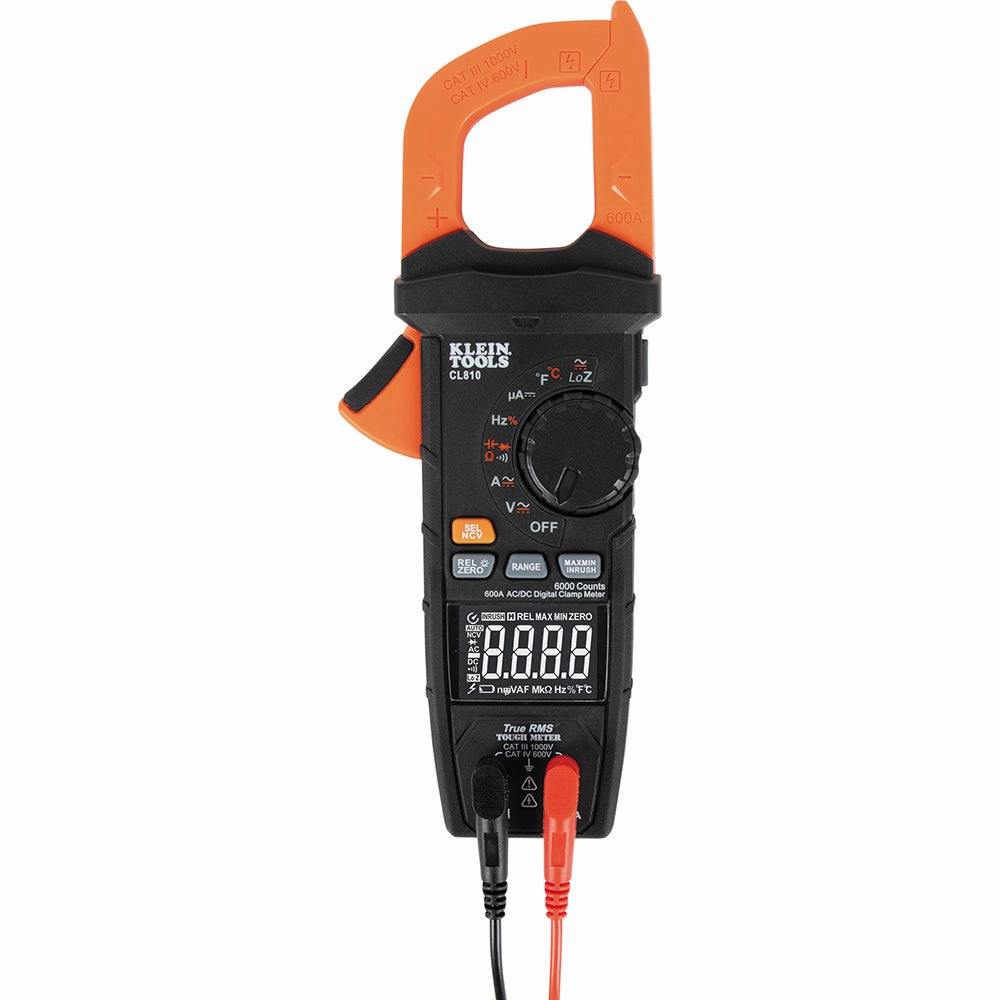

Clamp meter with True RMS provides accurate and reliable measurements across various applications
Measures AC/DC voltage, AC/DC current, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
Illuminated dial ensures clear visibility and easy reading, even in low-light environments
Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements

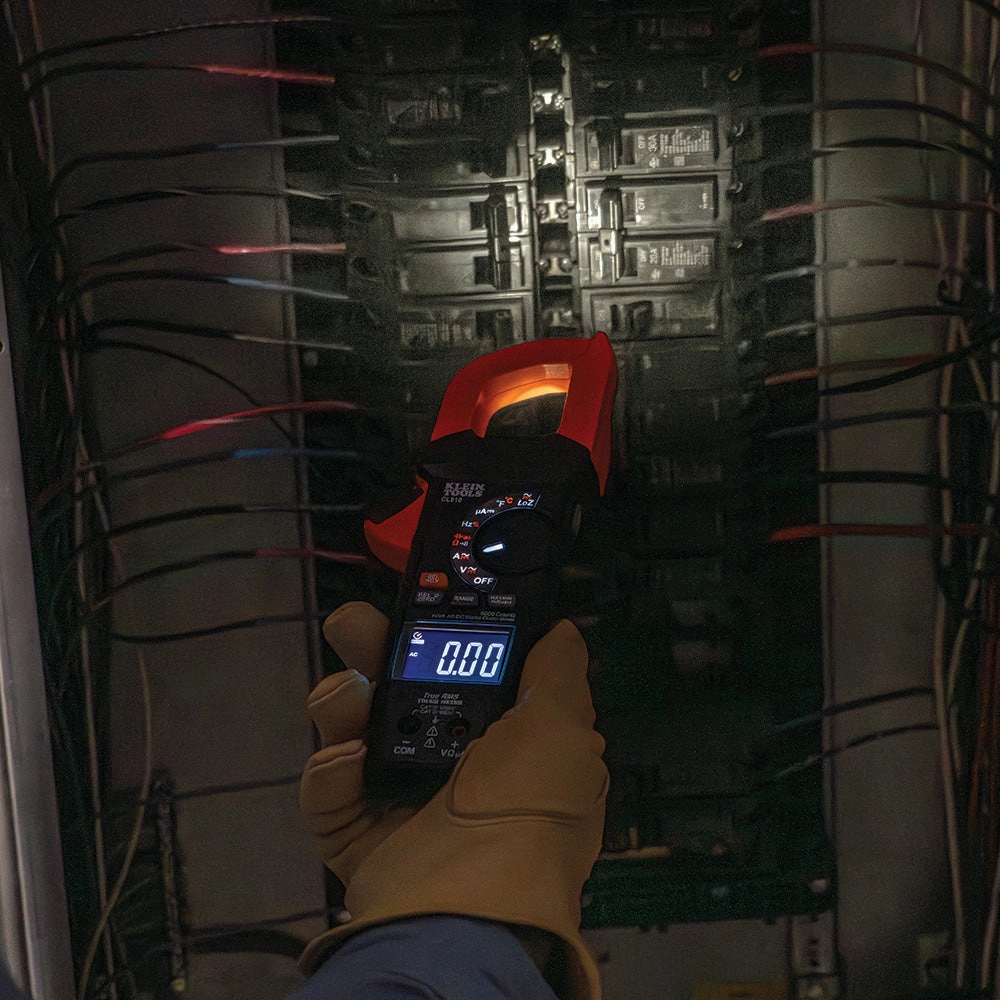

Integrated worklight illuminates the work area for improved visibility in dark or confined spaces

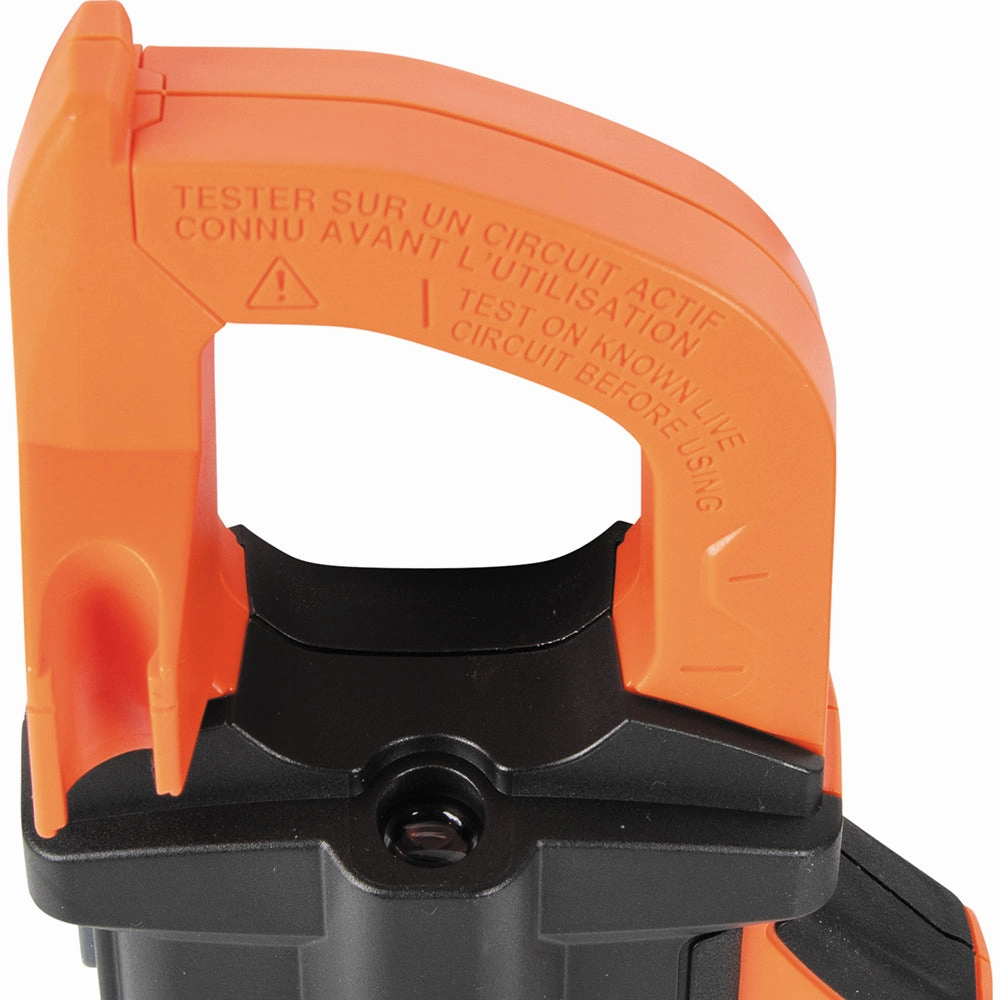

Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb

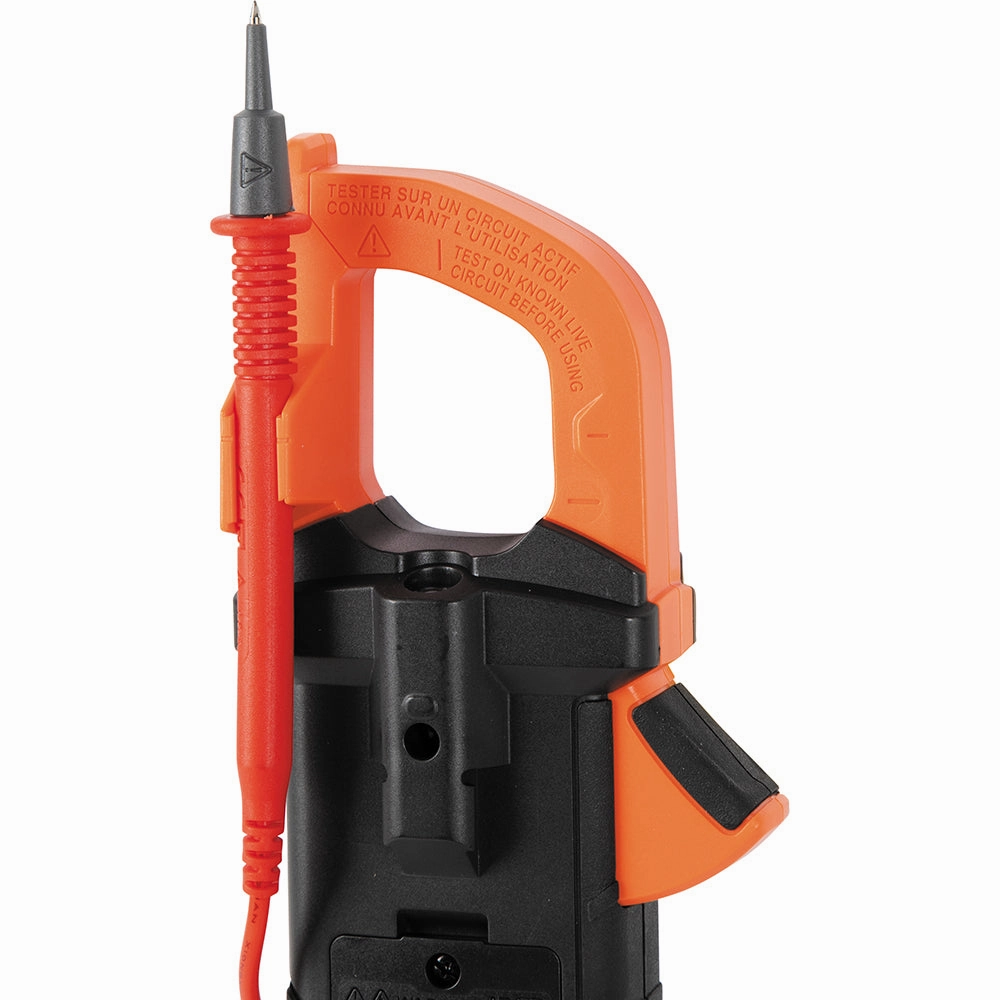

Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Measures AC/DC voltage, AC/DC current, resistance, DC micro amps, temperature, diode test, continuity, capacitance, frequency/duty cycle, and inrush
Transflective reverse-contrast display provides excellent visibility in both sunlight and dark environments
Illuminated dial ensures clear visibility and easy reading, even in low-light environments
Features a low impedance (LoZ) mode to identify and eliminate ghost voltages, preventing false readings and ensuring more accurate measurements
Integrated worklight illuminates the work area for improved visibility in dark or confined spaces
Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the clamp moves closer to the voltage source
Rated IP40 for ingress protection, withstands drops from 6.6 feet (2 m), and includes right-angle input test leads, thermocouple, storage pouch, instruction manual, and 3 x AAA batteries
Ergonomic design and overmold provide a comfortable grip, with easy dial adjustment using the thumb
Clamp body includes a side-mounted test lead holder and a back mount that accommodates an optional magnetic hanger (Cat. Nos. 69445 or 69417) for hands-free operation
Jaw Size
1.4'' (3.6 cm)
AC Voltage
1000V
DC Voltage
1000V
Current
600A
Capacitance
6000F
Resistance (Ohms)
60M
Frequency
1Hz - 500 KHz
General Information
Brand
Klein Tools
What's Included

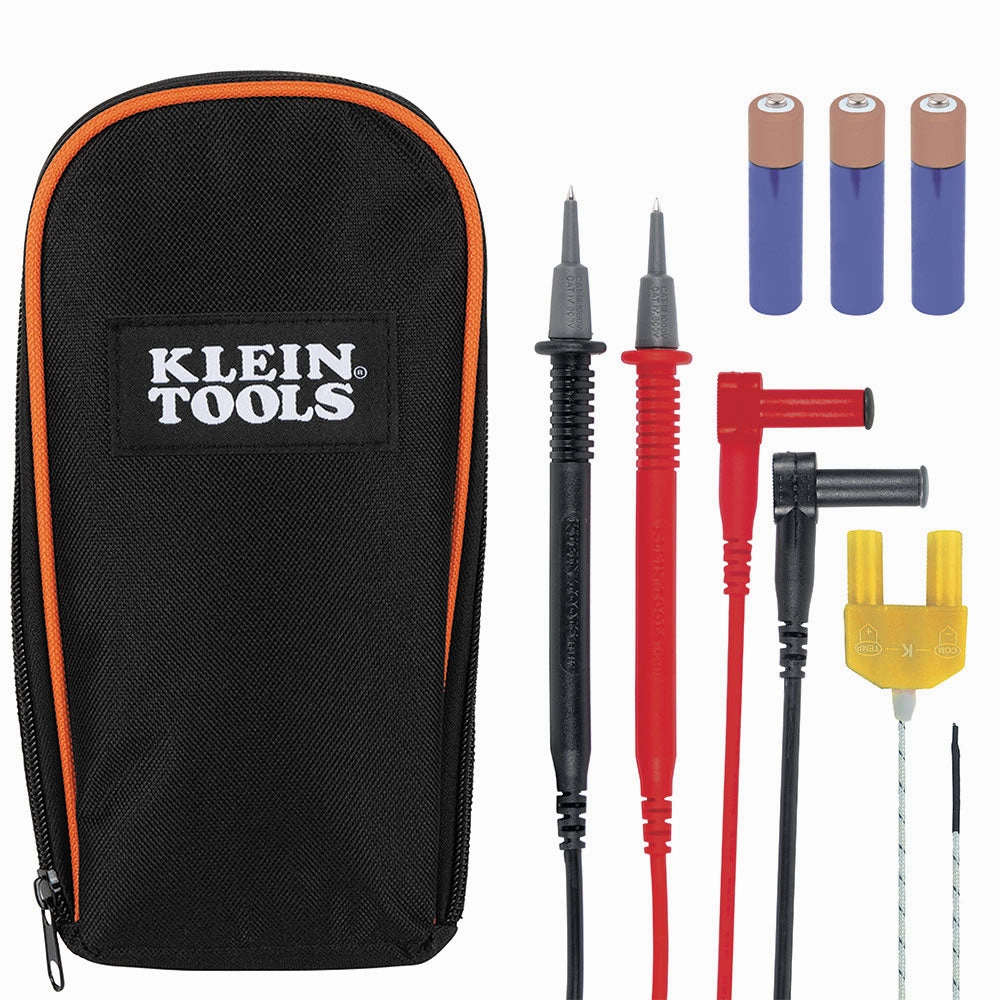

Clamp Meter; Right-Angle Input Test Leads; Thermocouple; Storage Pouch; Instruction Manual; and 3 x AAA Batteries
Packaging
Retail
California Residents
Part Number
CL810
Product Type
Pro Clamp Meter
Application

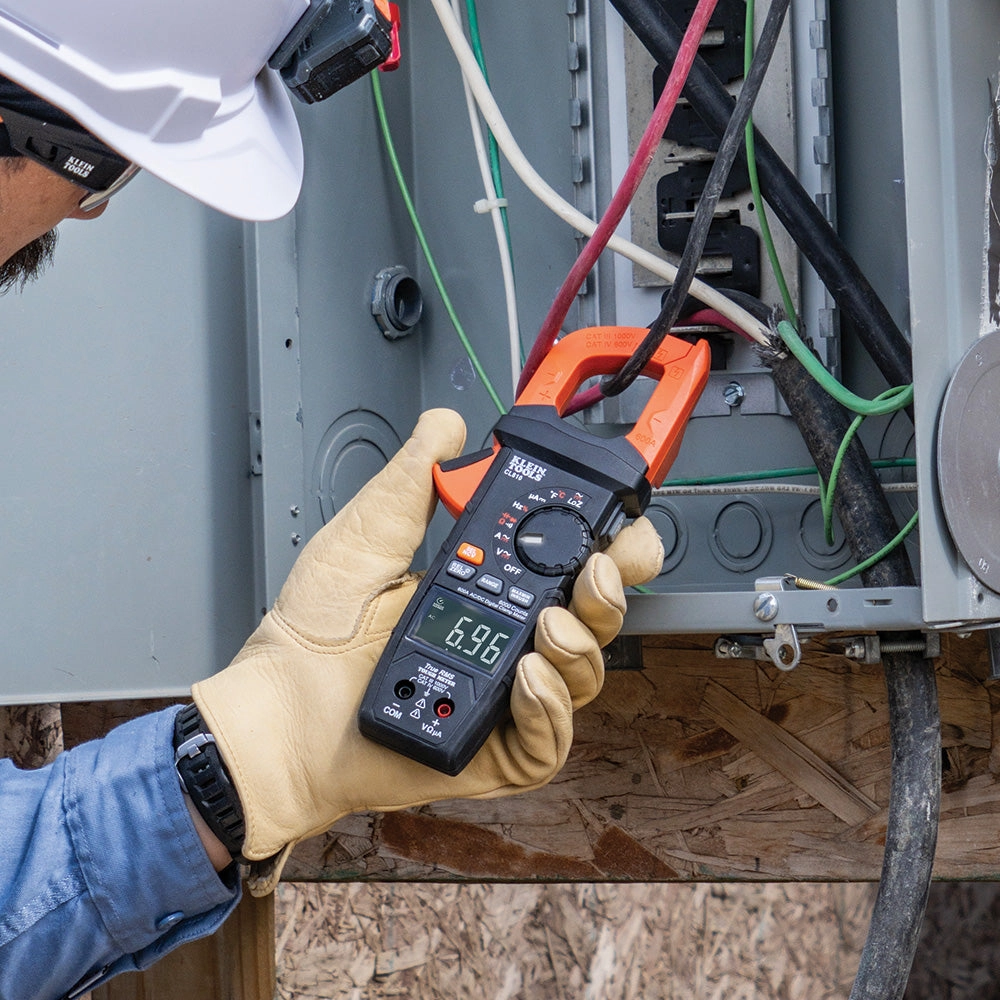

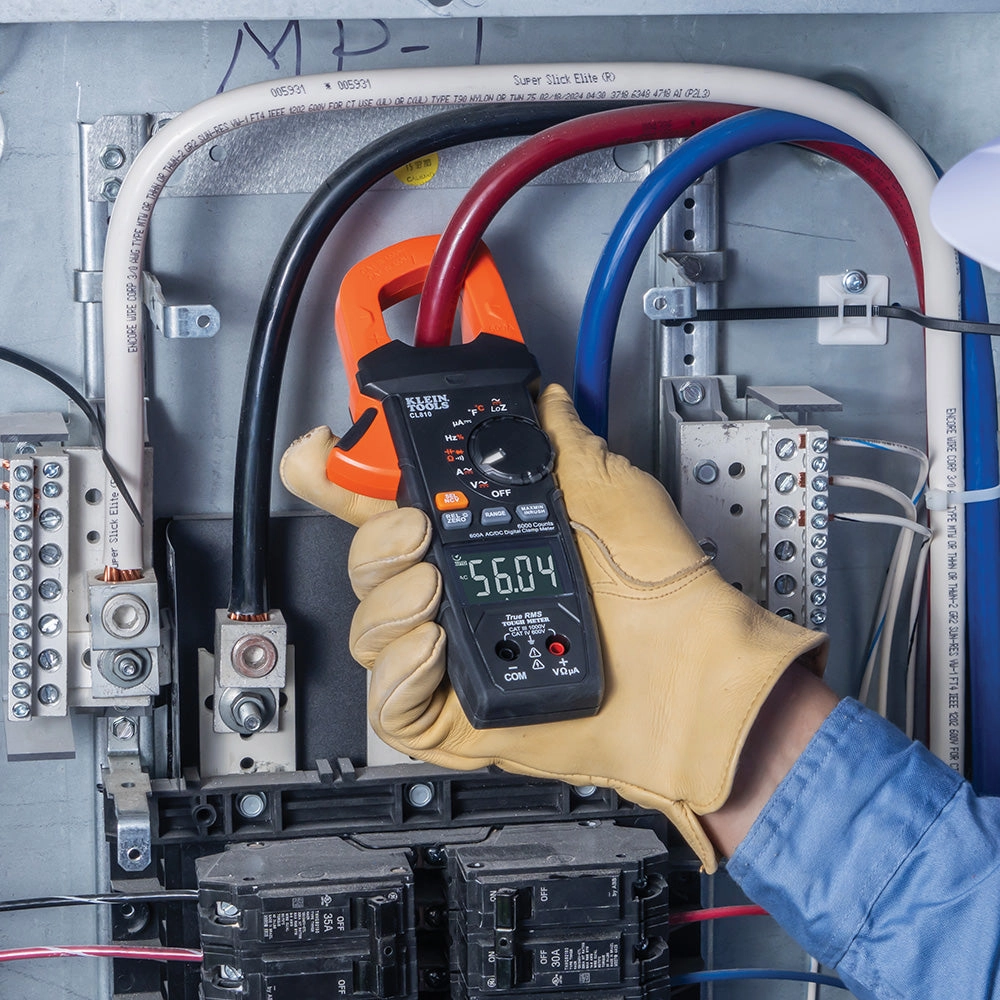

Variety of Electrical Diagnostic and Troubleshooting Applications
UPC
092644694486
