General Information
Brand
Klein Tools
Part Number
ET910
Product Type
Multimeter
Application
USB Port Voltage, Current, Capacity, Energy, Resistance (Calculated), Max Current
Packaging
Retail
UPC
092644691393
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black / Orange
Material
Polymer
Length
4.31'' (11 cm)
Width
2.15'' (5.5 cm)
Height
0.98'' (2.5 cm)
Weight
0.08 kg
0.18 lb
Details

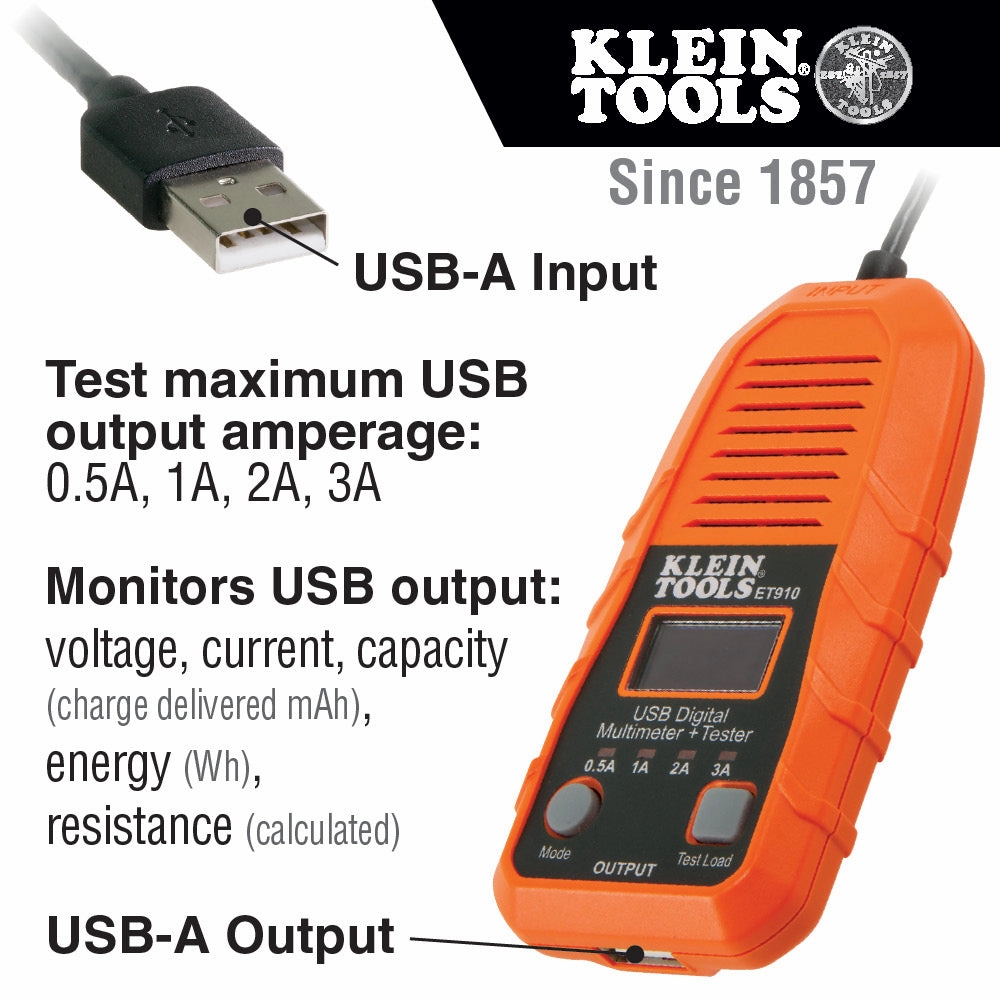

Features
Capacity Used: 99,999mAh Maximum
Energy Delivered: 999Wh Maximum
Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
3 to 20V DC; Current: 0.05 to 3A (monitoring mode)
Built-in test loads of 0.5A, 1A, 2A, and 3A; no external test load required
Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)

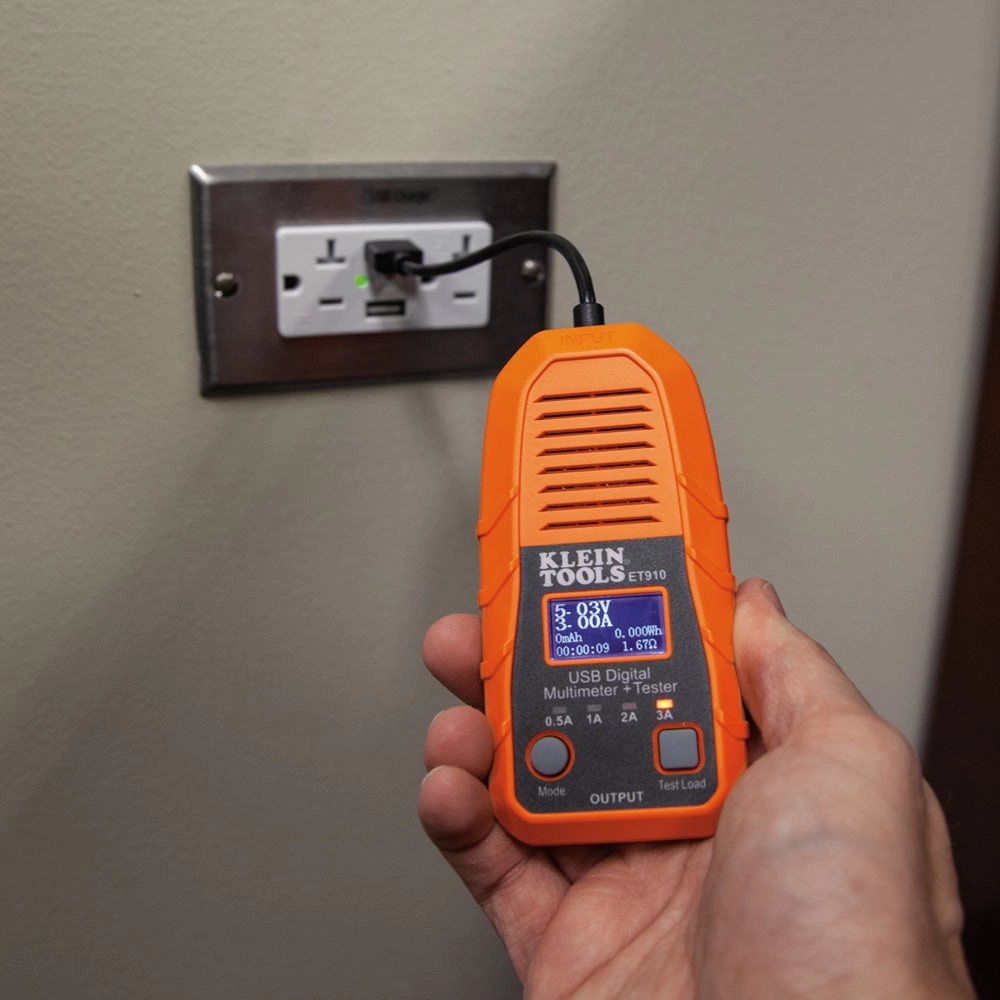

Tests most common standard USB-A ports, including Qualcomm Quick Charge ports
Store and recall up to 10 readings
Voltage and current overload detection
Hi-resolution LCD for clear visibility in environments with low ambient lighting
Durable cable to allow easy access to hard-to-reach ports
Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
Built to withstand a 6.6-Foot (2m) drop
No batteries needed; powered by the USB port being tested
Energy Delivered: 999Wh Maximum
Elapsed Time: Up to 999 Hours, 59 Min, 59 Secs
3 to 20V DC; Current: 0.05 to 3A (monitoring mode)
Built-in test loads of 0.5A, 1A, 2A, and 3A; no external test load required
Continuously monitor up to 1000 hours of voltage, current, capacity/charge delivered, energy, and resistance (calculated)
Tests most common standard USB-A ports, including Qualcomm Quick Charge ports
Store and recall up to 10 readings
Voltage and current overload detection
Hi-resolution LCD for clear visibility in environments with low ambient lighting
Durable cable to allow easy access to hard-to-reach ports
Rugged, pocket-sized, and light weight Klein industrial design stands up to jobsite demands
Built to withstand a 6.6-Foot (2m) drop
No batteries needed; powered by the USB port being tested
Current
0.05 to 3A
Voltage
3 to 20V DC
Resistance (Ohms)
400 ohms Maximum
Display Type
LCD
