General Information
Brand
Klein Tools
Part Number
IR10
Product Type
Infrared Thermometer
Application
Temperature Measurements Using IR Emission or K-Type Probe
What's Included
Custom Pouch, K-Type Probe and Battery
Packaging
Retail
UPC
092644691850
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Orange / Black
Material
Plastic Housing, Electronic Compenents
Length
7'' (17.8 cm)
Width
2.05'' (5.2 cm)
Height
4.49'' (11.4 cm)
Weight
0.21 kg
0.46 lb
Details
Measurement Standard
F or C
Functions
Accuracy: IR: 32 F and Above: /- 3 F or /- 1.5% (Whichever is Greater); Less Than 32 F: /- (3.6 F 0.2 F per Degree); K-Type: 32 F and Above: /- 2 F or /-% (Whichever is Greater); Above 32 F: /- 3 or /1% (Whichever is Greater)
Features
Incorporates surface temperature measurement capability using IR emission and can also measure bulk temperatures of air, gas, or liquids using a standard K-Type probe
Dual targeting lasers offer more accurate determination of the area being tested
Optical Resolution (Distance-to-Spot) is 20:1
Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
Bright backlit display for working in low ambient lighting conditions
Statistical parameters for measurement event - max/min/avg/diff
User definable high/low limits with audible and visual alarms when limits are breached
Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on

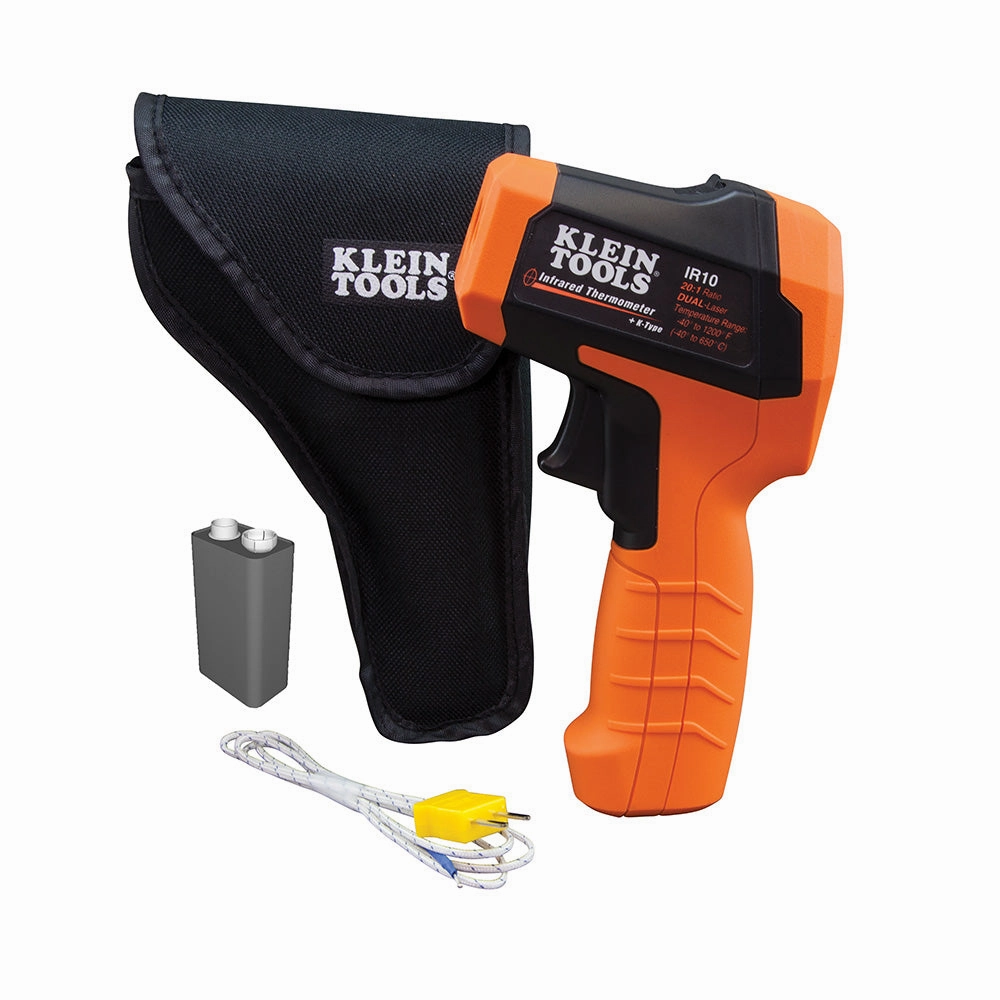

Includes custom pouch, K-Type probe and battery
Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
IP54 ingress protections for dust and water resistance
''Auto Power-Off'' conserves and extends battery life
U.S. patent D791,624
Dual targeting lasers offer more accurate determination of the area being tested
Optical Resolution (Distance-to-Spot) is 20:1
Measurement range for both IR and K-Type probe -40 to 1200-Degree Fahrenheit (-40 to 650-Degree Celsius)
Adjustable emissivity from 0.1-1.0 delivers flexibility to address multiple applications
Bright backlit display for working in low ambient lighting conditions
Statistical parameters for measurement event - max/min/avg/diff
User definable high/low limits with audible and visual alarms when limits are breached
Uses one 9-volt alkaline battery, with battery life expectancy at 8 hours of continuous use with laser and backlight on
Includes custom pouch, K-Type probe and battery
Soft-touch, over-mold housing; built to withstand a 9.9-Foot (3 m) drop
IP54 ingress protections for dust and water resistance
''Auto Power-Off'' conserves and extends battery life
U.S. patent D791,624
Batteries
1 x 9V
Display Type
Digital Backlit
Test & Measure Types
Dual-Laser Infrared Thermometer
Temperature Range
-40 to 1200 F (-40 to 650 C)
