General Information
Brand
Klein Tools
Part Number
VDV501-770
Product Type
Twisted Pair, DATA, Voice, LAN, and Coaxial
Application
Cable Testing
UPC
092644583957
What's Included

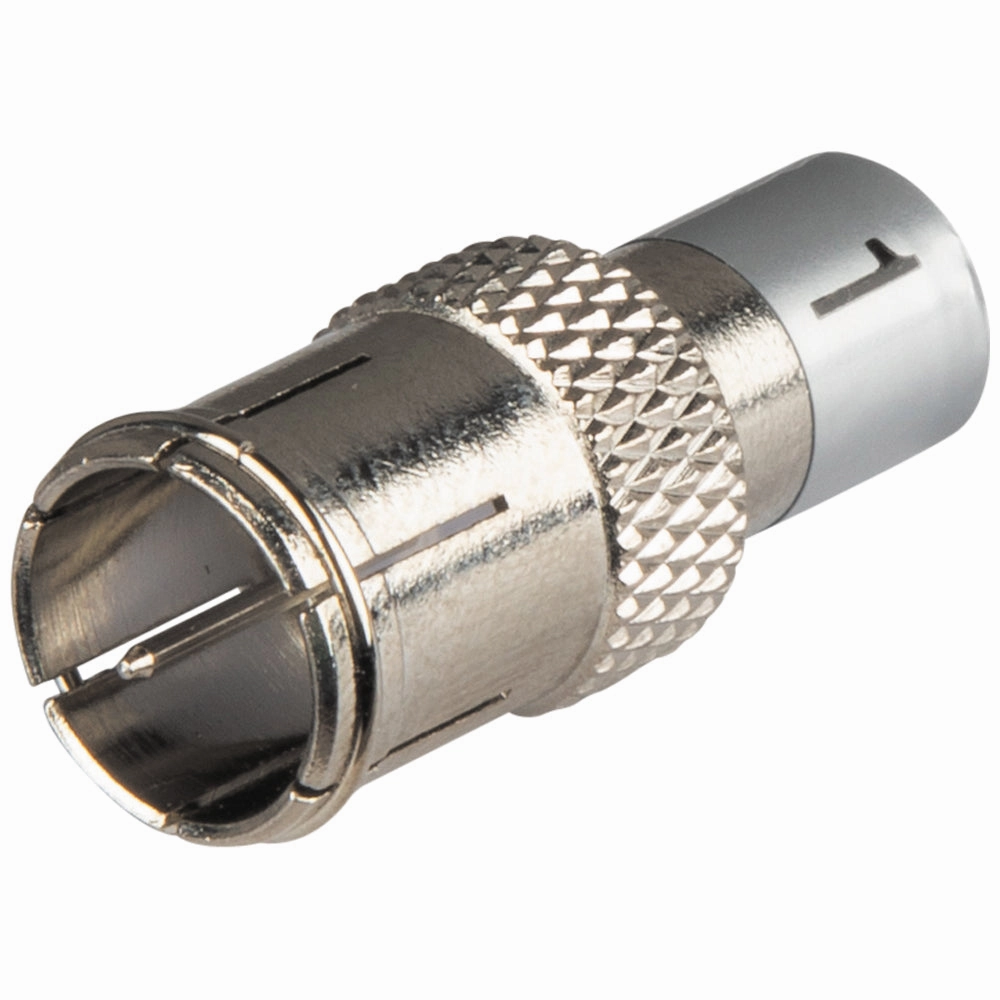

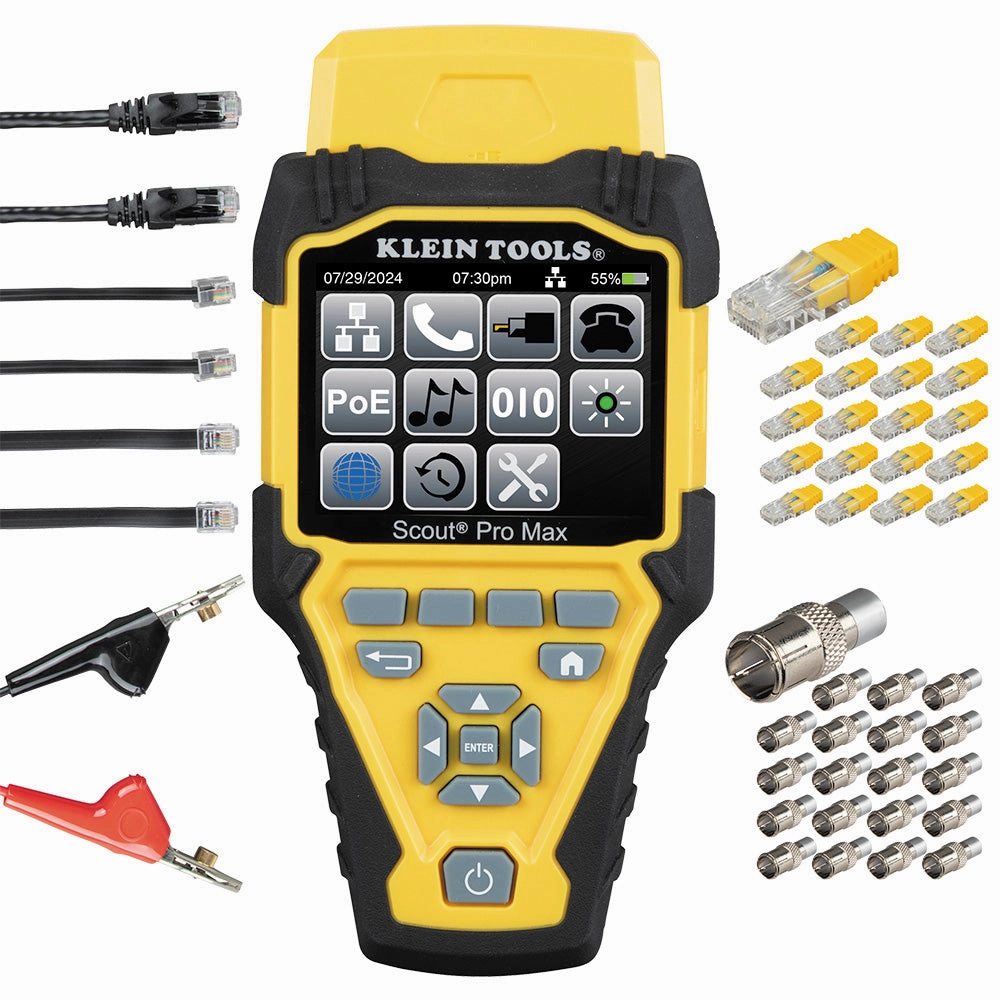

Tester, Self-Storing Remote, RJ45 CAT6 to RJ45 CAT6 Cable (T658B) (2), RJ11 to RJ11 Cable (2), RJ12 to RJ12 Cable (2), Female Coax-F to Angled-Bed-of-Nails Cable, RJ45 LanMap Location ID Remotes (1-20), F-Connector CoaxMap Location ID Remotes (1-20), Female F-Barrel Connector, USB-C to USB-A Cable, Carrying Case
Packaging
Retail
California Residents
Physical Characteristics
Color
Yellow, Black, Red
Material
Plastic and Metal
Length
8'' (20.3 cm)
Width
4'' (10.2 cm)
Height
1.5'' (3.8 cm)
Weight
1.68 kg
3.70 lb
Details
Features

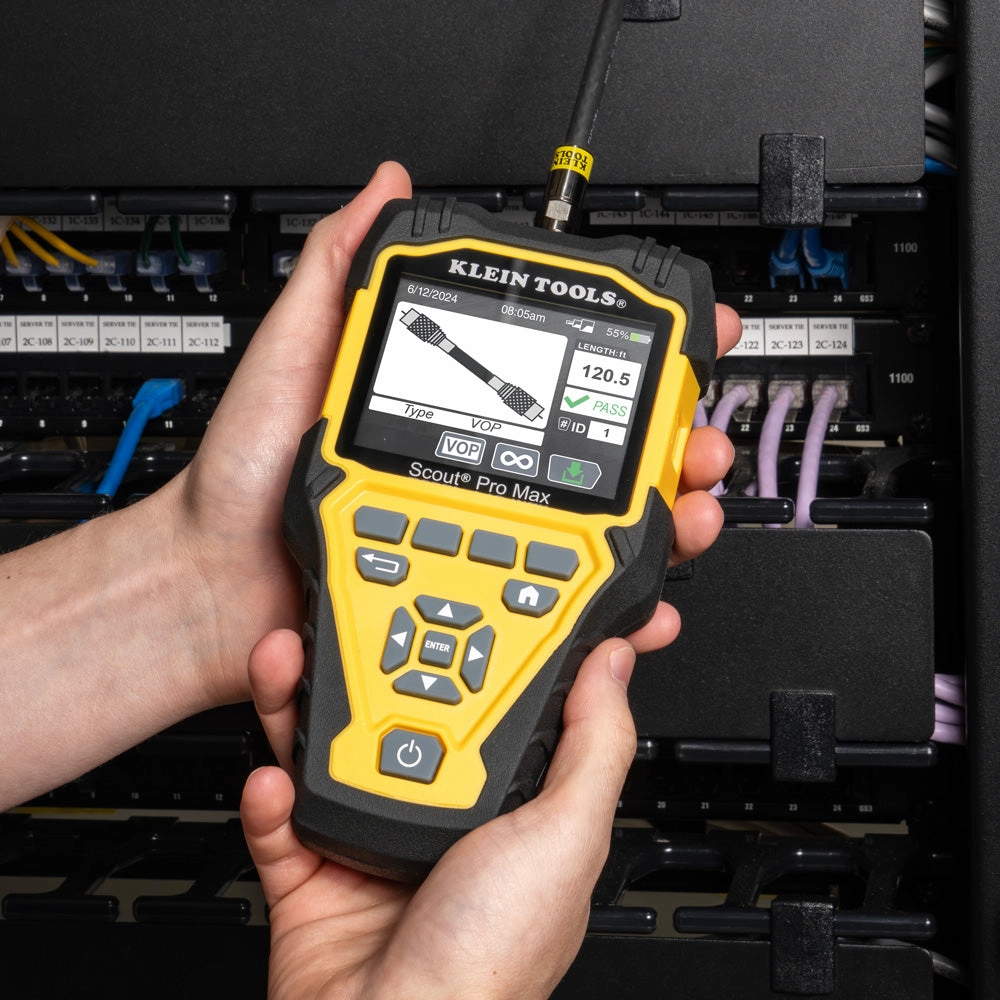

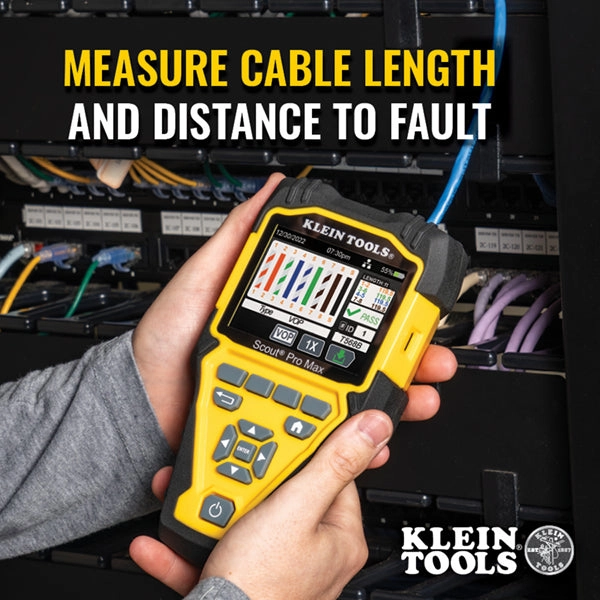

Accuracy: (2% 3' or 1 m) with Known VoP and Consistent Cable Parameters
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately

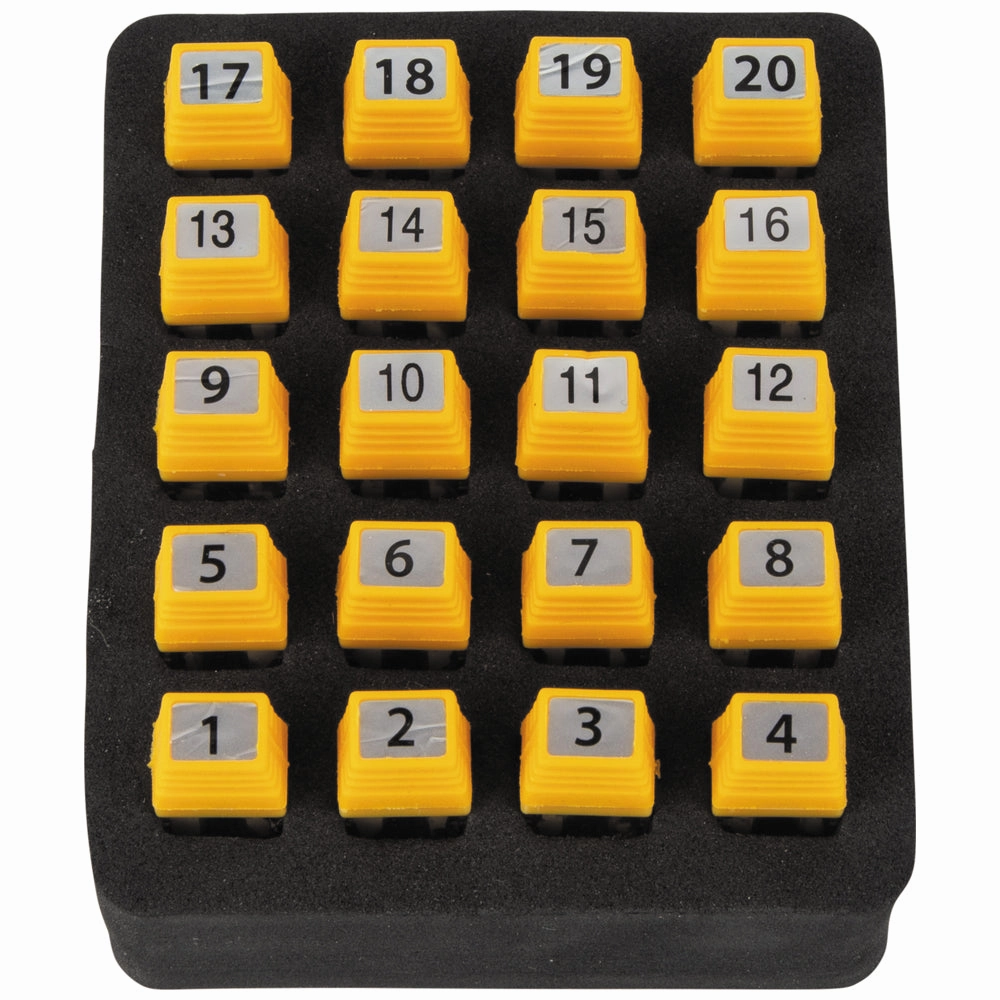

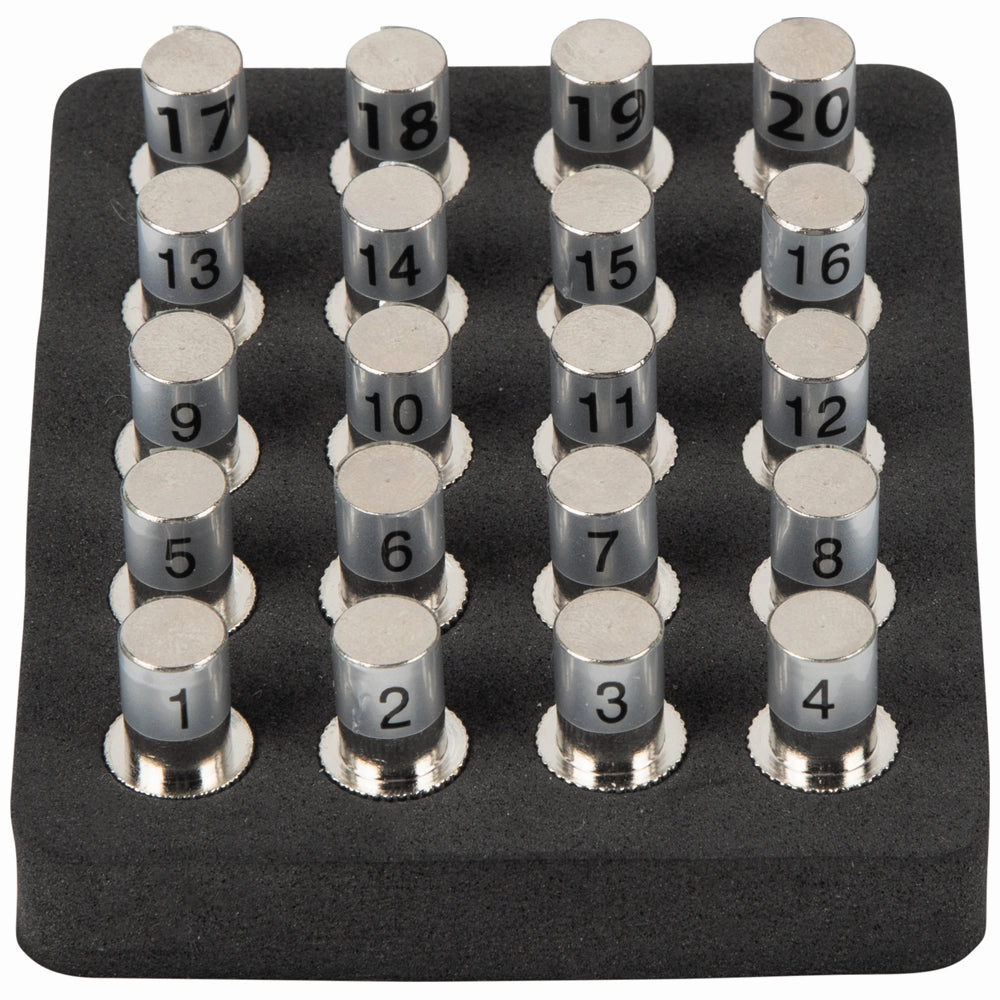

Cable Identification: Includes 20 Remote Locators
Multiple Style Tone Generator: Yes (5); Requires Tracing Probe (Cat. No. VDV500-223); Sold Separately
Cable Identification: Includes 20 Remote Locators
Batteries
3 AA alkaline
Battery Life
Active: 15 hr; Standby: 1 yr
Supported Remotes
41
Cable Type
DATA:, Shielded or Unshielded, CAT6; COAXIAL: RJ11, RJ12, RJ45
Connection & Adapter Types
RJ11, RJ12, RJ45, Coax F
Display Type
Backlit LCD

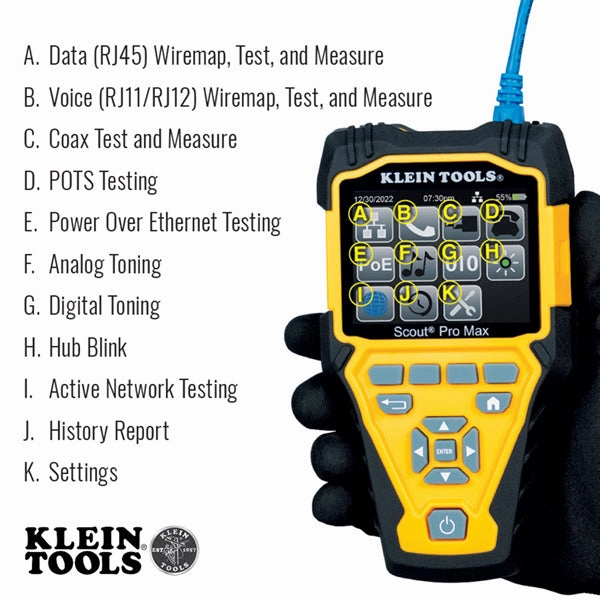

Test & Measure Types
Ethernet/Data and Coaxial
