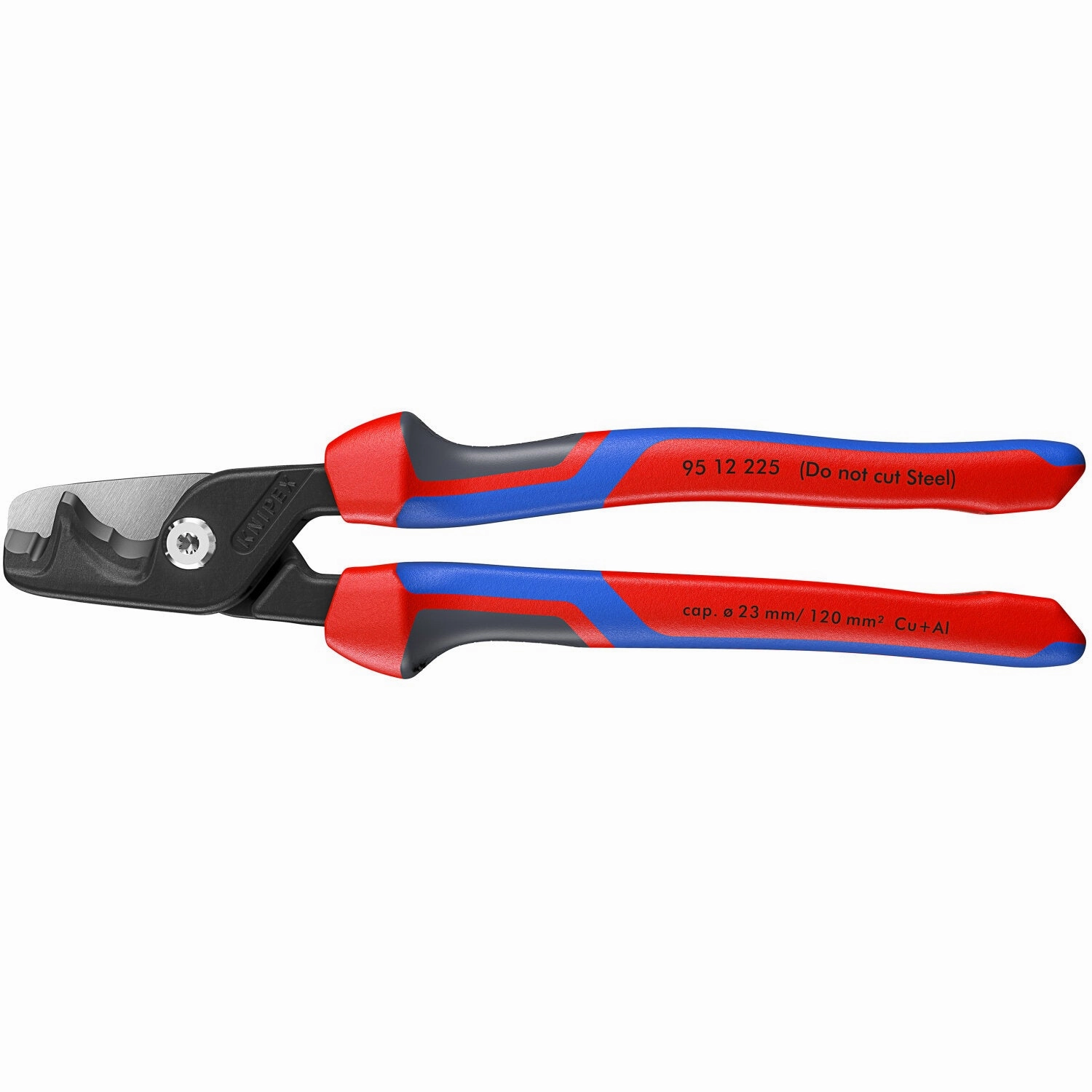

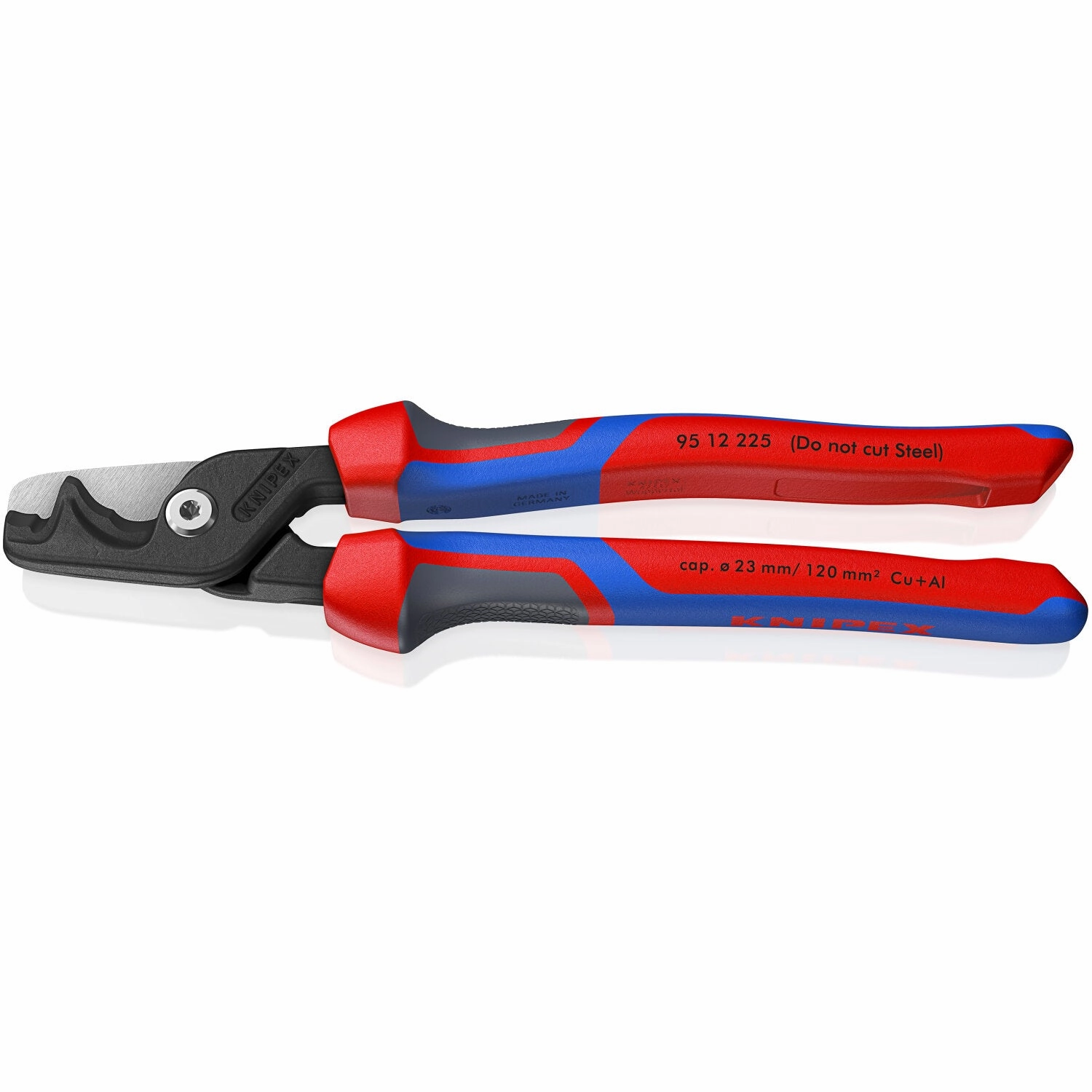

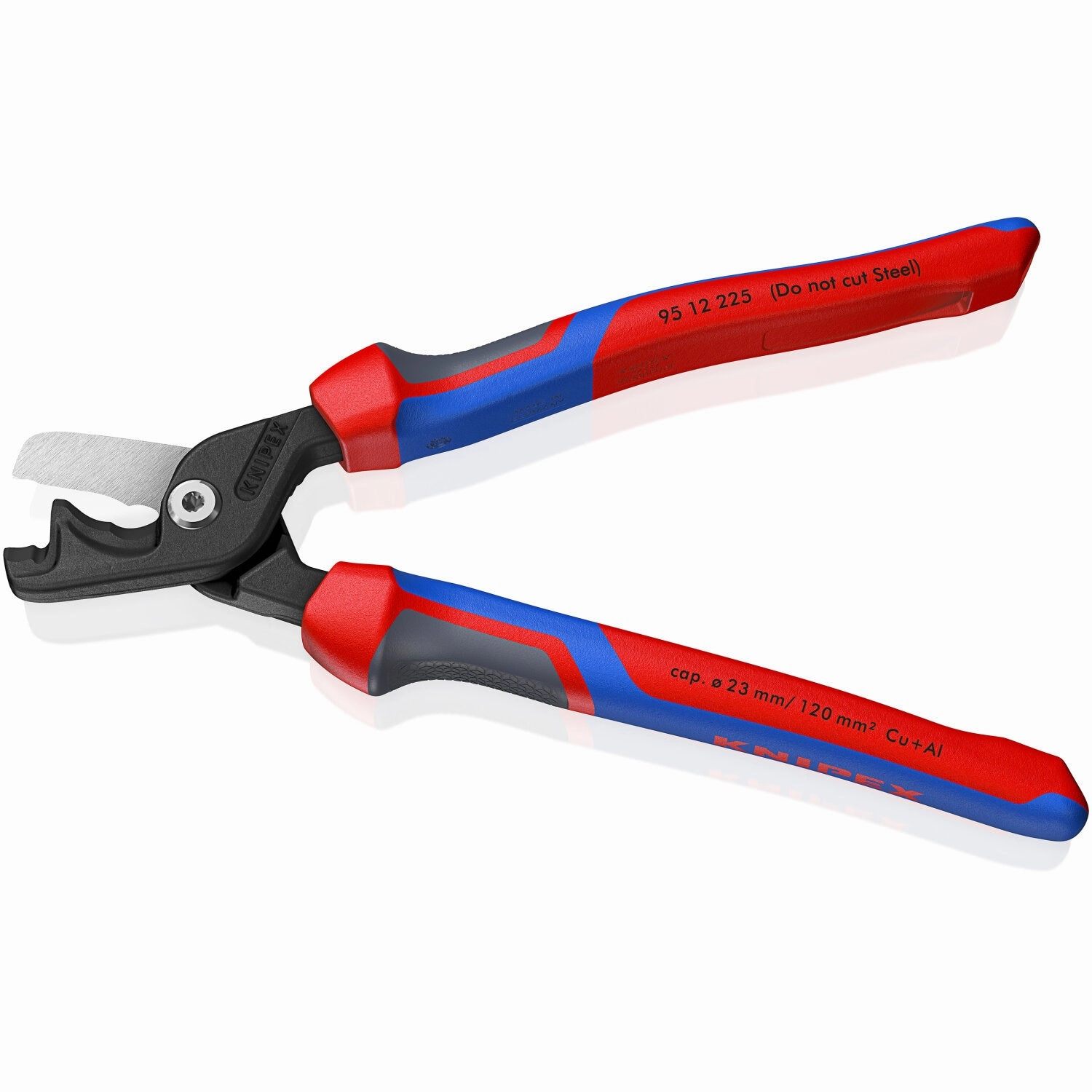

General Information
Brand
KNIPEX
Part Number
95 12 225
Product Type
Cable Shear
Packaging
Bulk
Country of Origin
Germany
UPC
843221029746
California Residents
Physical Characteristics
Length
9 1/8"
Width
2 1/4"
Height
1"
Weight
0.42 kg
0.93 lb
Color
Red, Gray & Blue
Finish
Burnished
Material
High-Grade Special Tool Steel
Durability
Approx. 56 HRC
Details
Size
Size: 9"
Cable Types: Stranded Cables, Fine Stranded Cables, Solid Cable
Cutting Capacity - Cu and AI Conductor: 29/32"
Cable Types: Stranded Cables, Fine Stranded Cables, Solid Cable
Cutting Capacity - Cu and AI Conductor: 29/32"
Tip Style
Shear
Grip Type
Comfort Grip - 6 3/8"
Pliers Type
Cable Shear
Jaw Width
1 1/4"
Jaw Length
1 1/4"
Jaw Thickness
1/2"
AWG
Up to 2/0 AWG (Solid and Stranded Cables), Up to 4/0 AWG (Fine Stranded Cables)
Features
High-leverage joint, long handles and optimized cutting edges: noticeably easier cutting than with compact cable shears
Large cutting capacity: cuts solid copper or aluminum cables up to 35 mm, stranded cables up to 70 mmand fine stranded cables up to 120 mm

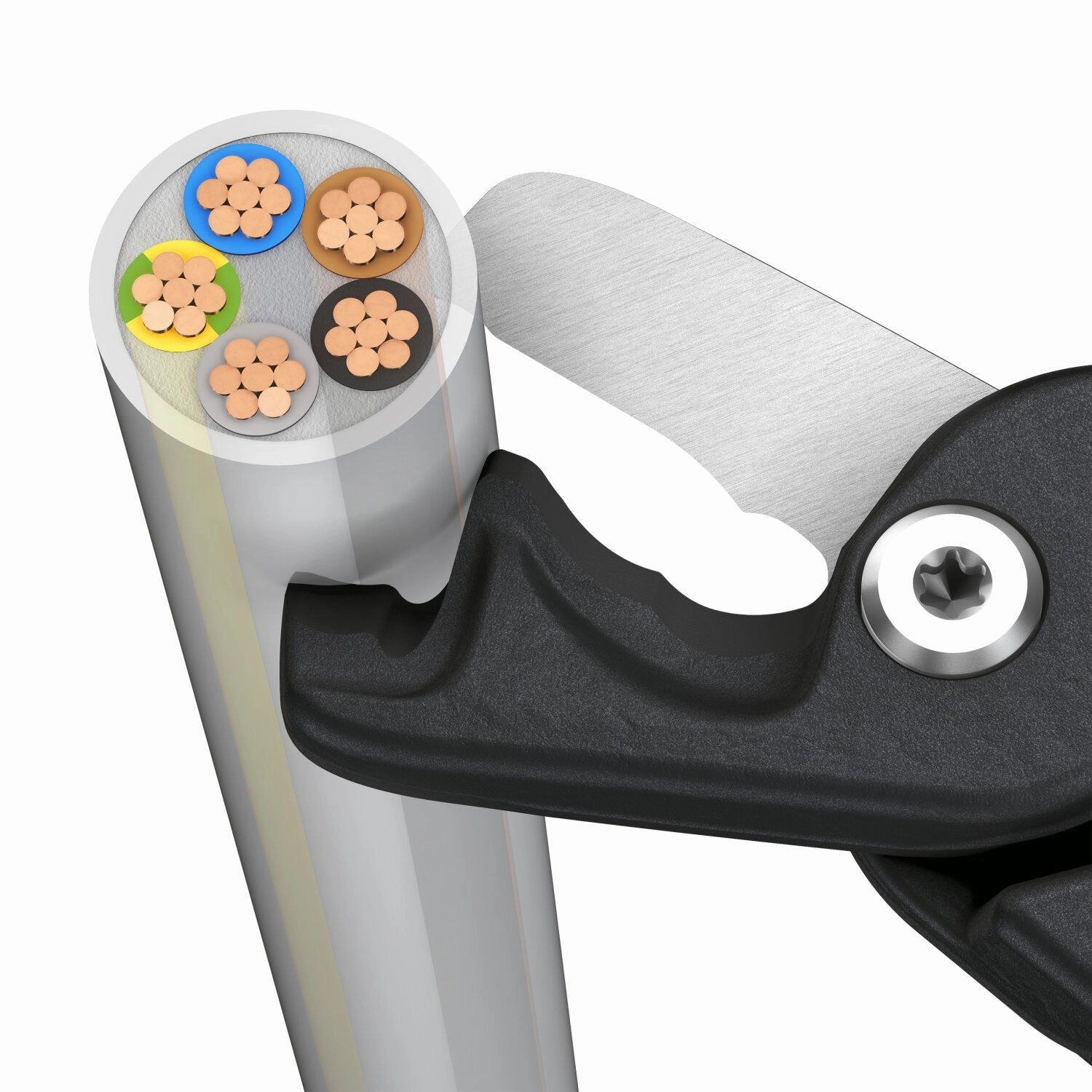

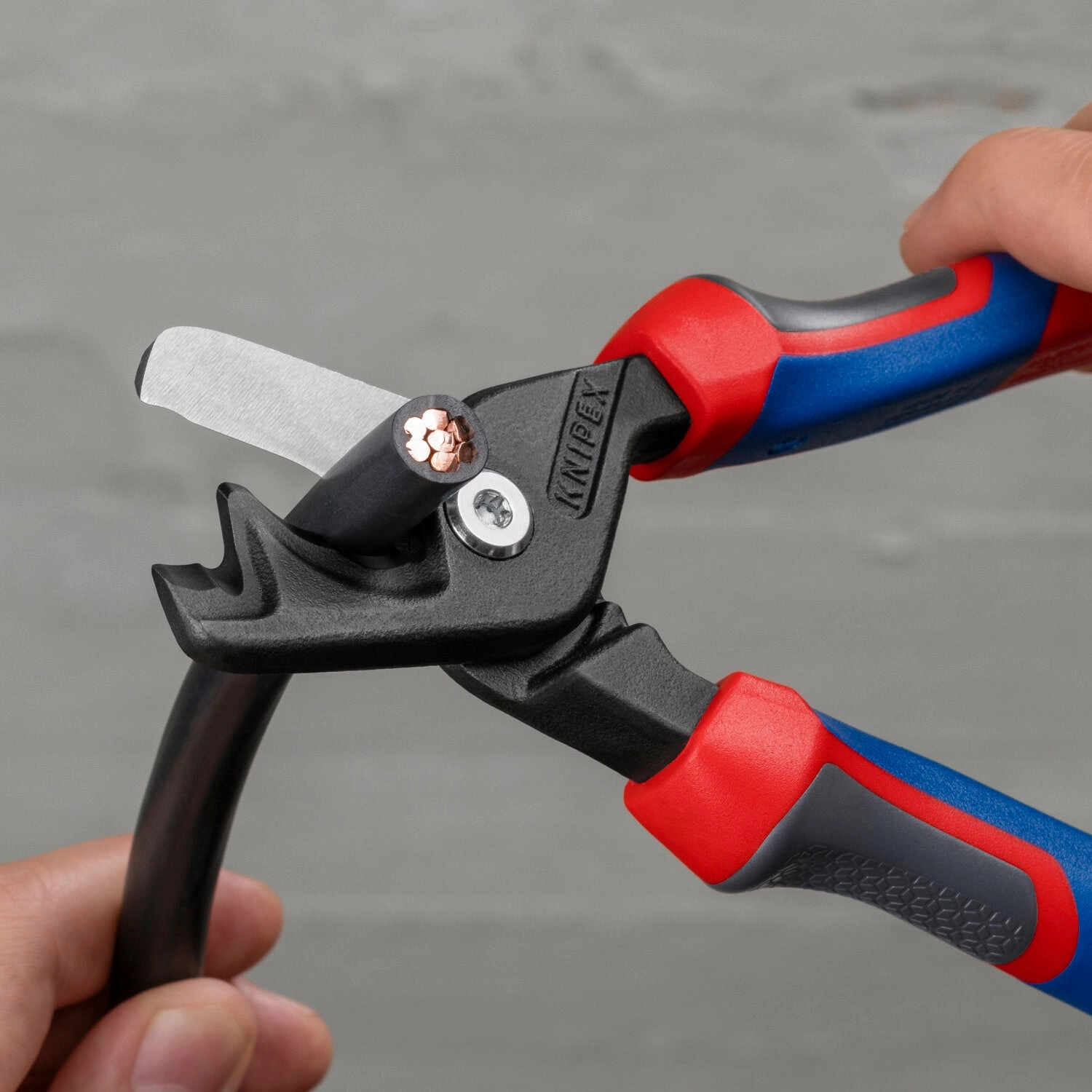

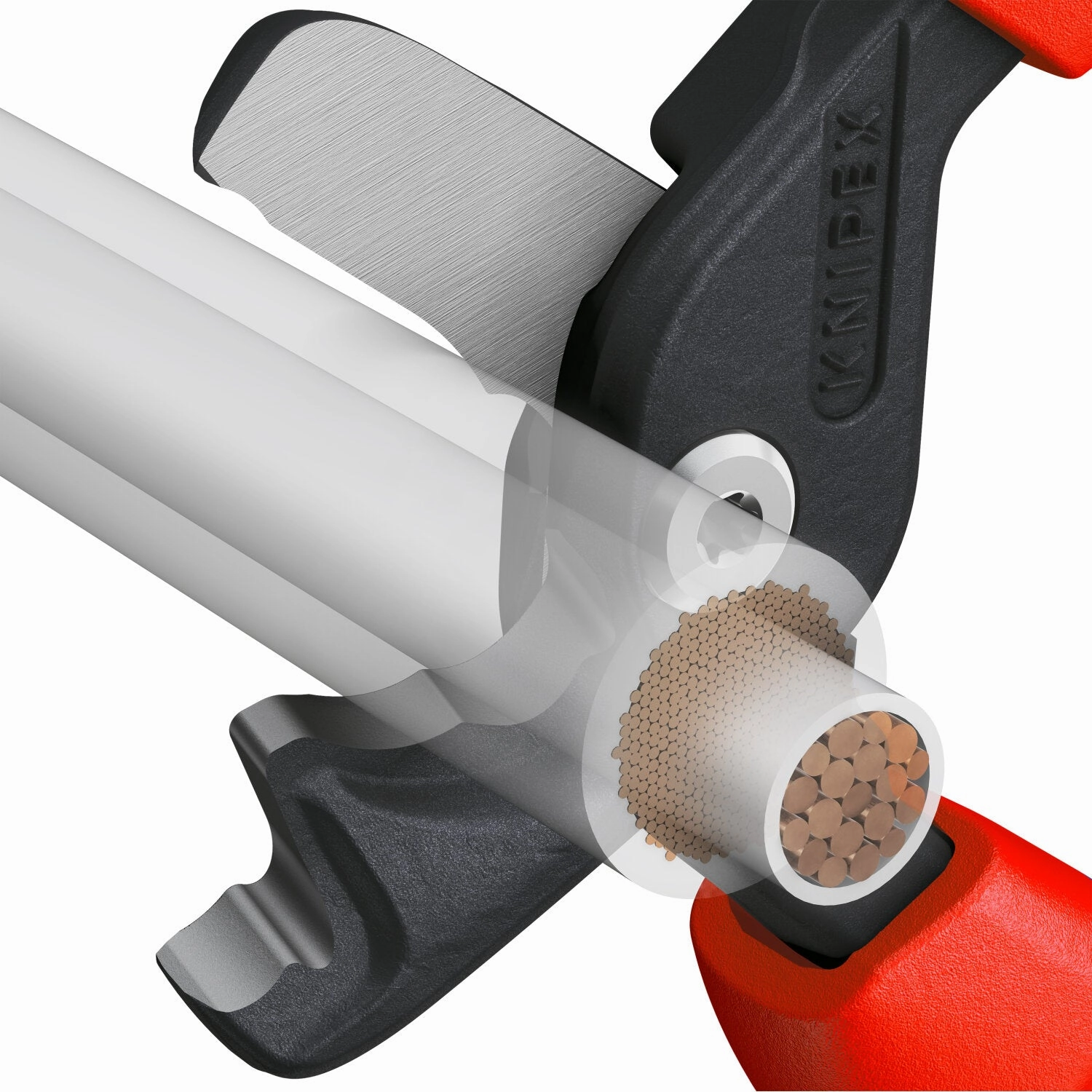

Dual cutting areas: Stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step

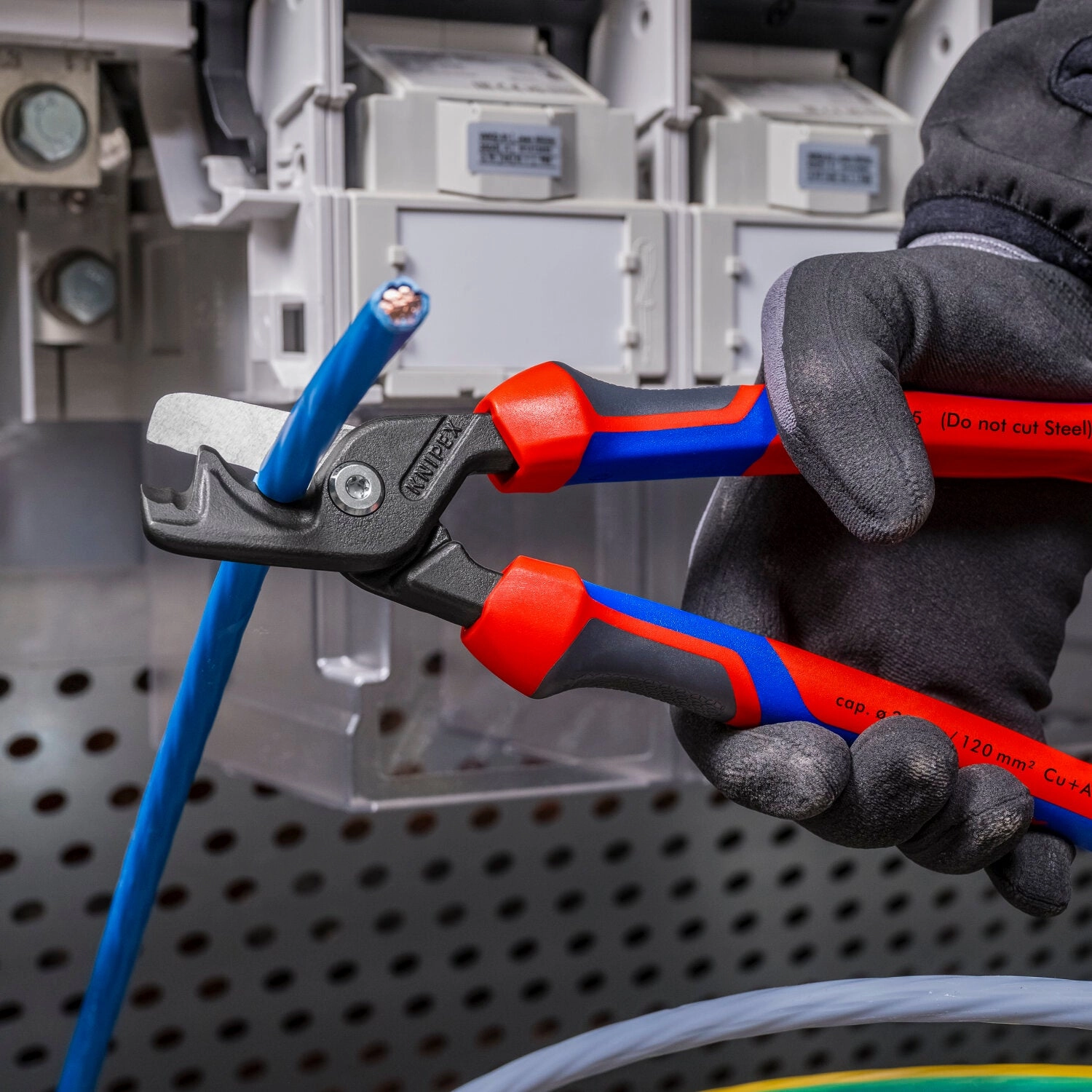

Easy one- or two-handed operation with minimum handle opening for large cable diameters
Adjustable, high-leverage bolted joint provides precise and smooth cutting
Slim head for easier accessibility
Pinch guard prevents operators' fingers being pinched
Not suitable for steel-reinforced cables, e.g. ACSR
Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC

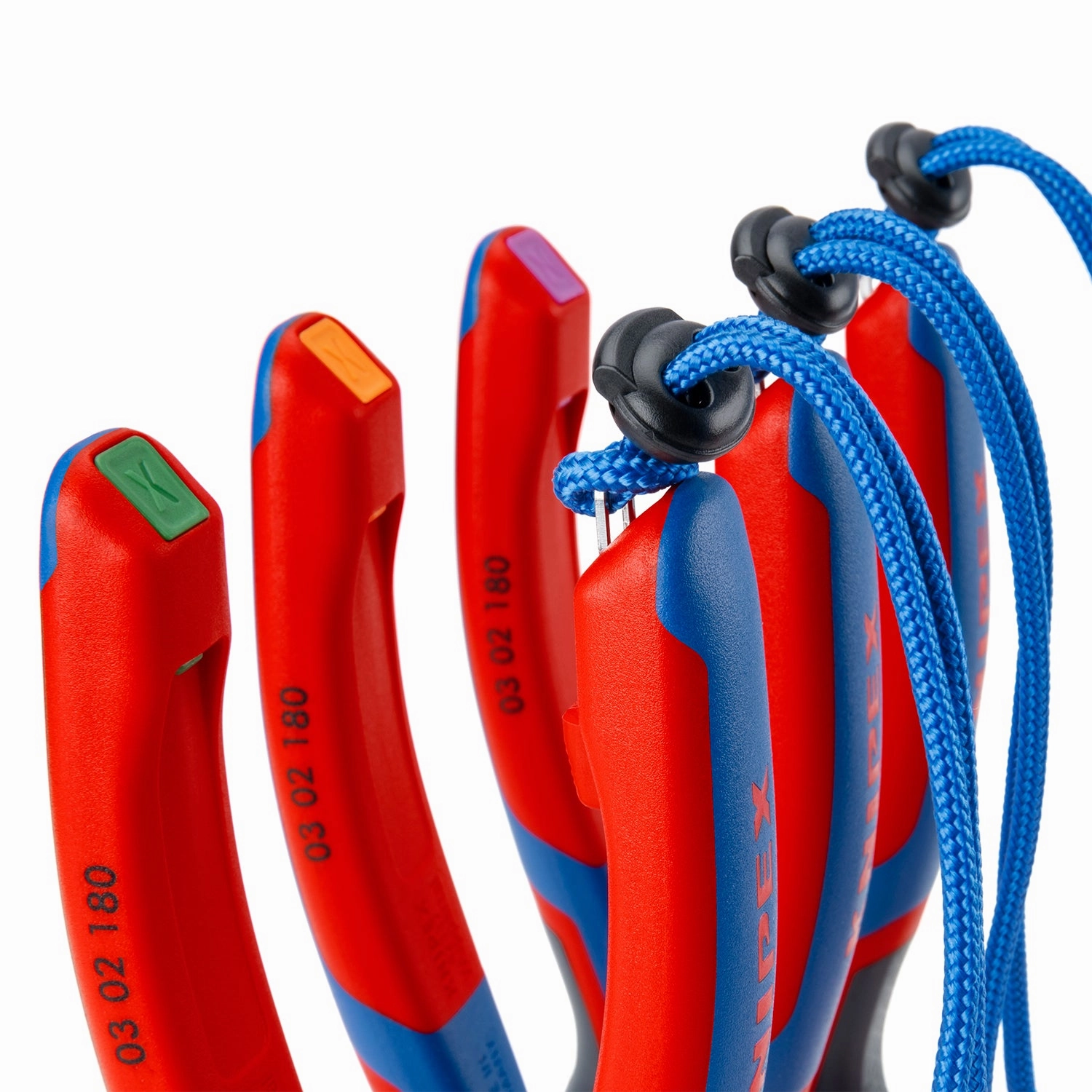

With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
Large cutting capacity: cuts solid copper or aluminum cables up to 35 mm, stranded cables up to 70 mmand fine stranded cables up to 120 mm
Dual cutting areas: Stepped cutting edge holds small and larger cables close to the joint during the cut; the front cutting edge cuts very large cables step by step
Easy one- or two-handed operation with minimum handle opening for large cable diameters
Adjustable, high-leverage bolted joint provides precise and smooth cutting
Slim head for easier accessibility
Pinch guard prevents operators' fingers being pinched
Not suitable for steel-reinforced cables, e.g. ACSR
Cutting edges additionally laser-hardened, cutting edge hardness approx. 56 HRC
With comfort handles: consisting of three ergonomic components for optimized handling and equipped with two KNIPEXtend interfaces for extensions
