General Information
Brand
Wera
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288233691
California Residents
Part Number
05005901001
Product Type

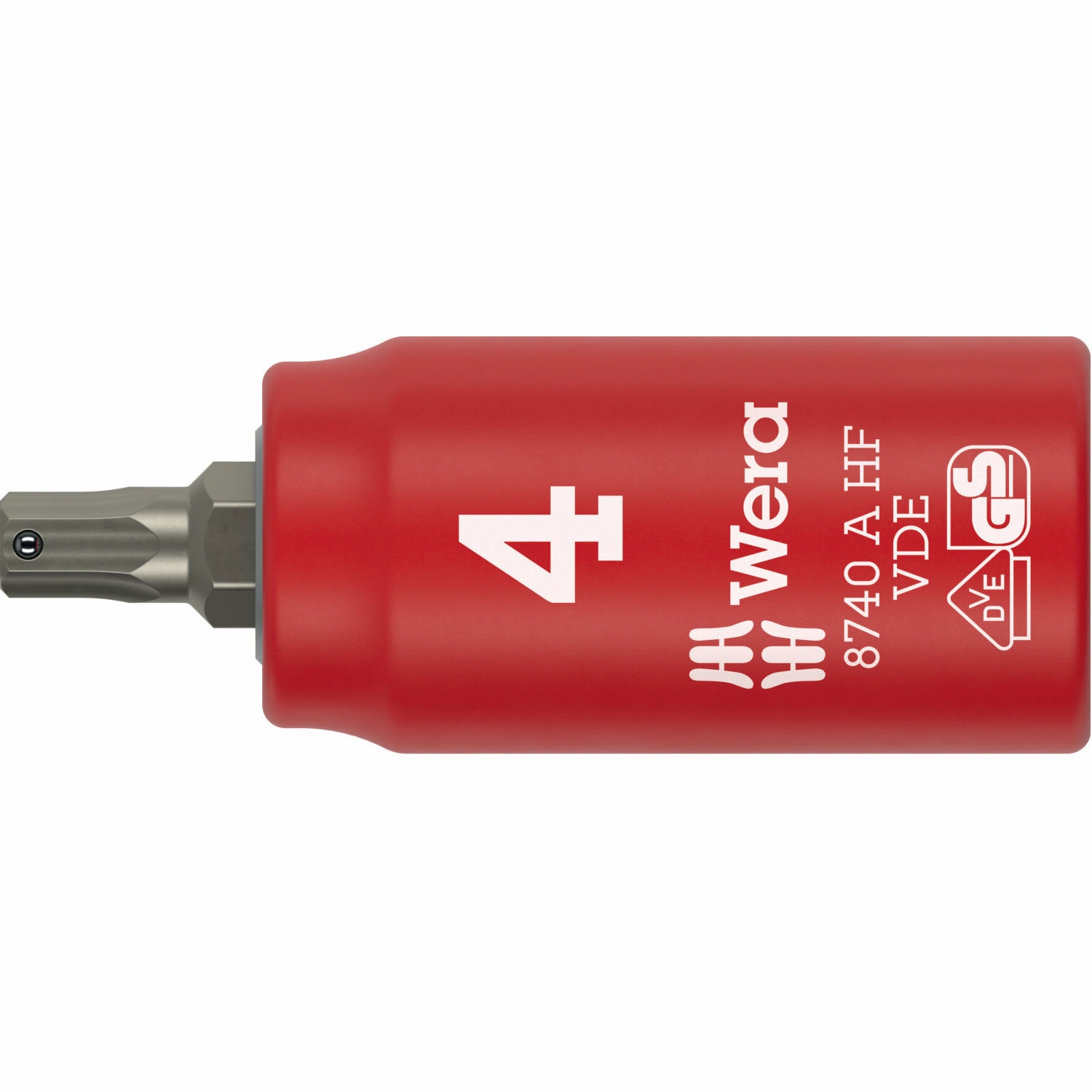

Insulated Socket
Physical Characteristics
Length
6.02" (153 mm)
Width
4.72" (120 mm)
Height
0.71" (18 mm)
Weight
0.03 kg
0.06 lb
Color
Red & Yellow
Finish
Insulated
Material
Drop-Forged Steel
Details
Tip Type
Hex
Features
For hexagonal socket head screws
Individually tested tools as per IEC 60900 at 10,000 V for safe working up to 1,000 volt
Extremely short and compact insulated 1/4" bit socket for easy working even in very confined spaces

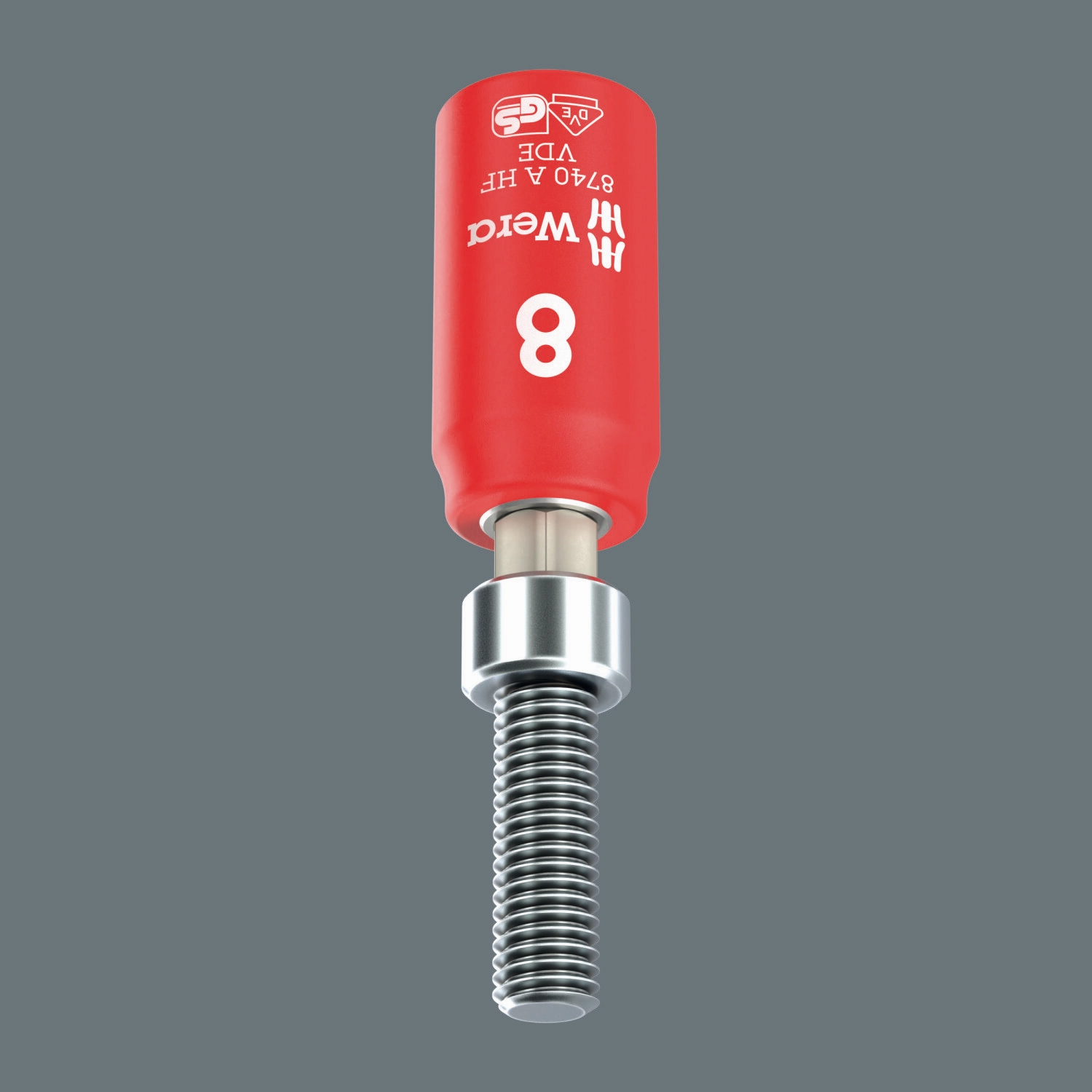

The holding function holds screws securely on the tool

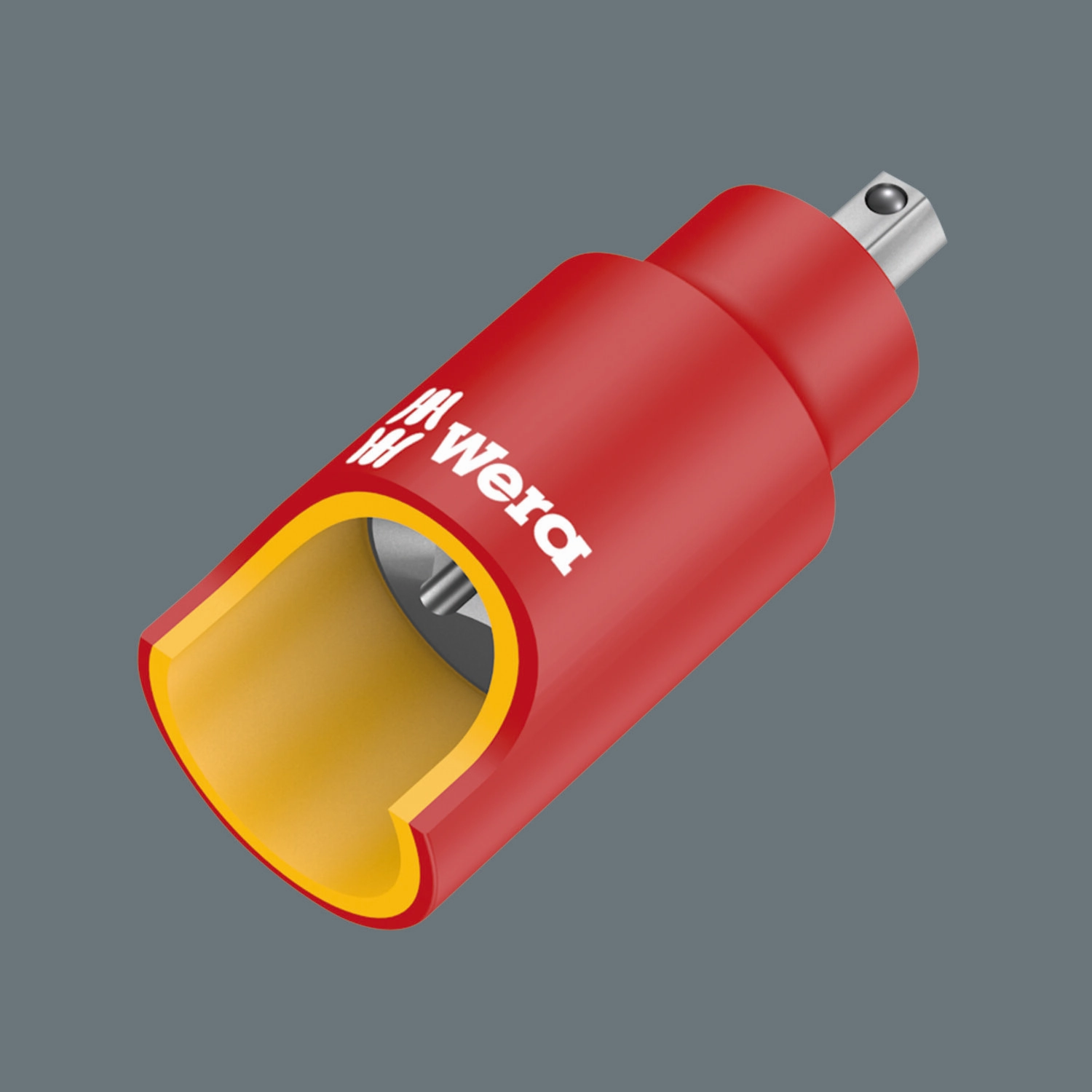

Increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer
Plastic sleeve protects surfaces from damage
Individually tested tools as per IEC 60900 at 10,000 V for safe working up to 1,000 volt
Extremely short and compact insulated 1/4" bit socket for easy working even in very confined spaces
The holding function holds screws securely on the tool
Increased safety thanks to 2-component insulation with a yellow insulation core under an outer red insulation layer
Plastic sleeve protects surfaces from damage
Size
Tip Size: 4 mm
Total Length: 45 mm
Diameter (Rear): 18 mm
Tip Height: 9 mm
Total Length: 45 mm
Diameter (Rear): 18 mm
Tip Height: 9 mm
Drive Connector Size
1/4"
