General Information
Brand
Wera
Number of Pieces
39
Packaging
Retail
Country of Origin
Czech Republic
UPC
4013288234902
California Residents
Part Number
05049056001
Product Type
Socket, Bit & Ratchet Set
Physical Characteristics
Length
7.48" (190 mm)
Width
3.94" (100 mm)
Height
1.38" (35 mm)
Weight
0.50 kg
1.10 lb
Color
Black & Green, Color-Coded
Finish
Matte
Material
Chrome Vanadium Steel
Details
Tip Type
Phillips, Pozidriv, TORX, Slotted, Hex, Square
Features

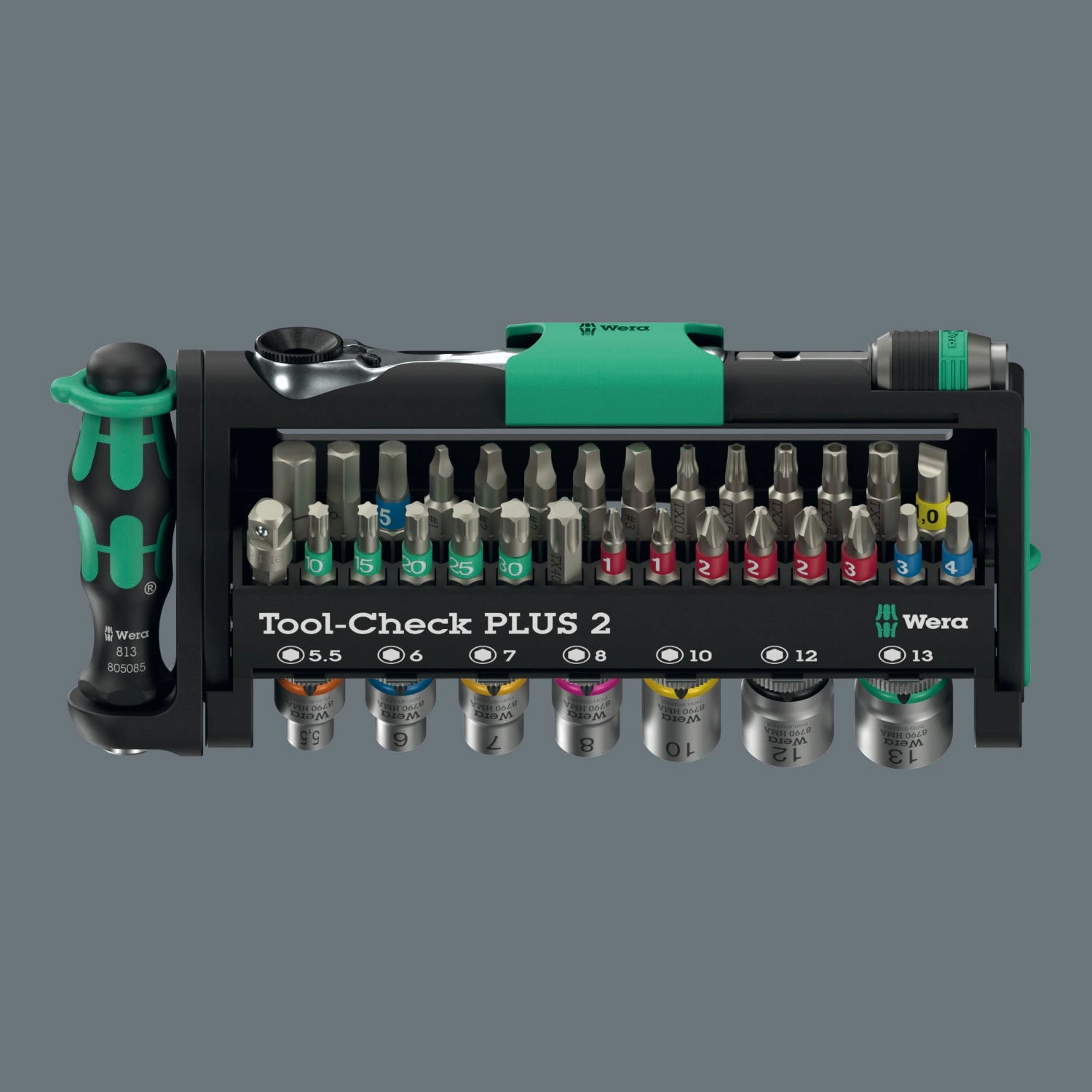

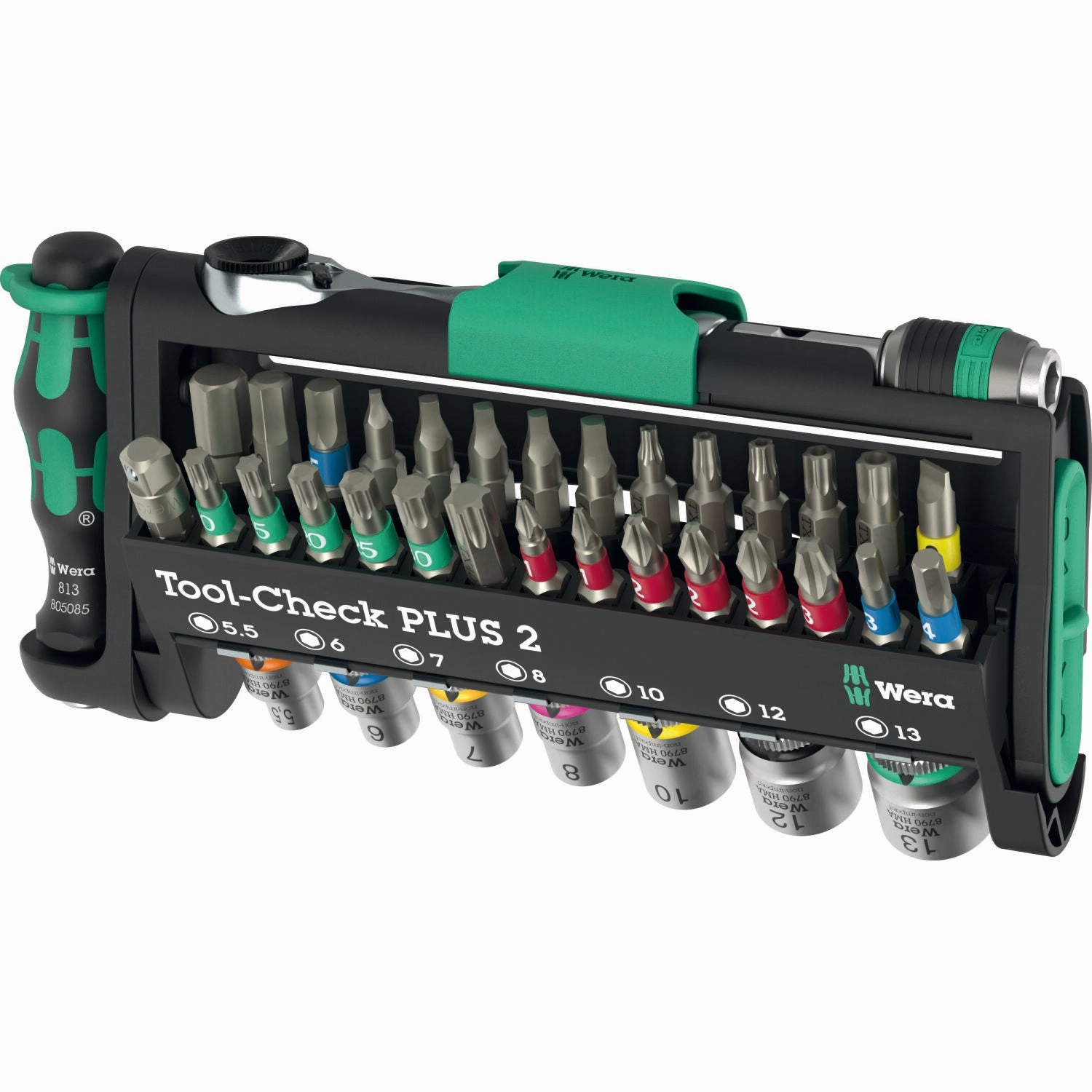

Very compact 39-piece tool set for manual and machine use
Perfect for a wide variety of screw connections with Zyklop Mini with 1/4" bit mounting, bitholding screwdriver or bit holder
Green locking components to secure the tools
Ideal for mobile use
1/4" bit ratchet, Kraftform bitholding screwdriver, BiTorsion bits (BTZ), Rapidaptor bit holder, adapter and 1/4" sockets
BiTorsion bits for long service life
With Square-Plus bits (Robertson)
Perfect for a wide variety of screw connections with Zyklop Mini with 1/4" bit mounting, bitholding screwdriver or bit holder
Green locking components to secure the tools
Ideal for mobile use
1/4" bit ratchet, Kraftform bitholding screwdriver, BiTorsion bits (BTZ), Rapidaptor bit holder, adapter and 1/4" sockets
BiTorsion bits for long service life
With Square-Plus bits (Robertson)
Size

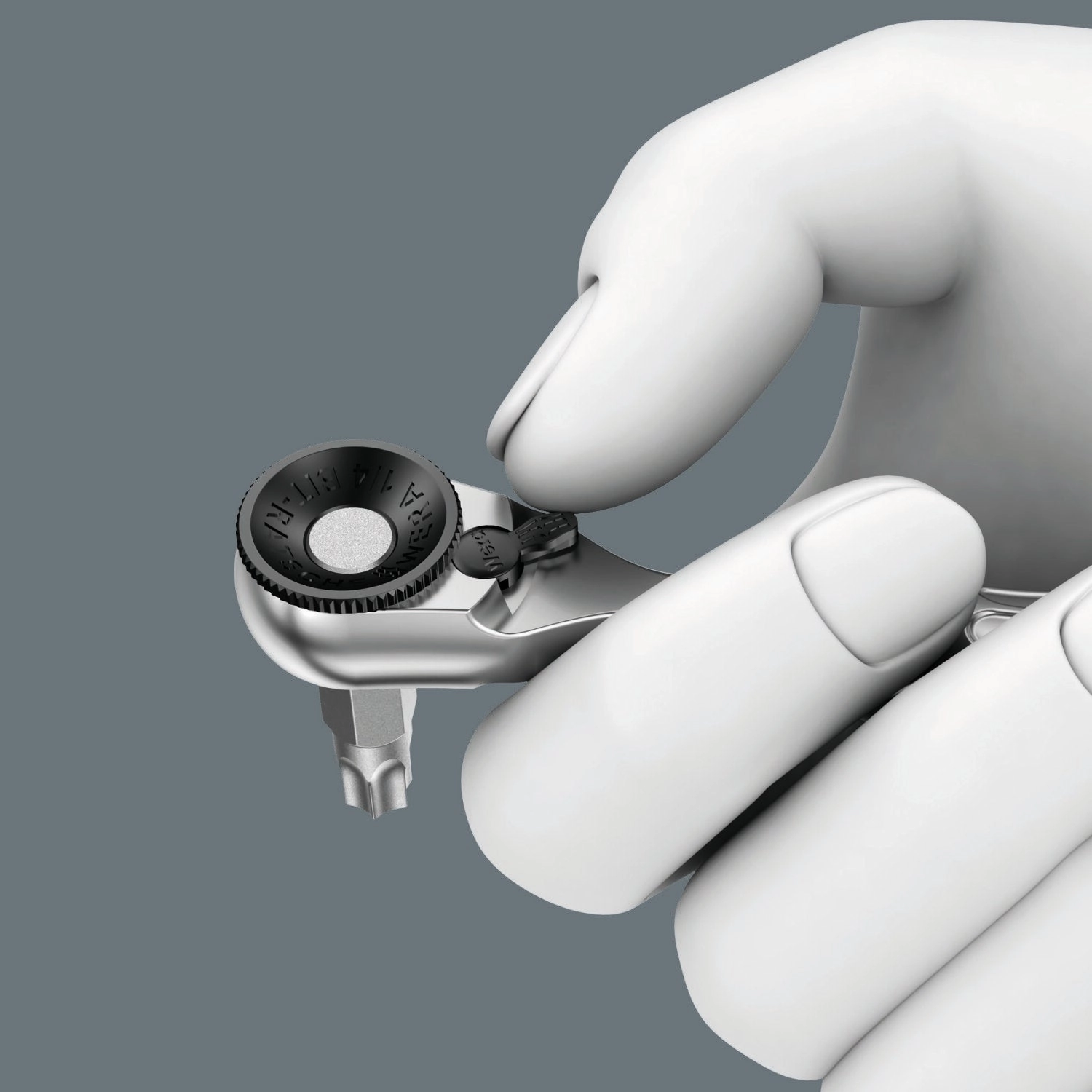

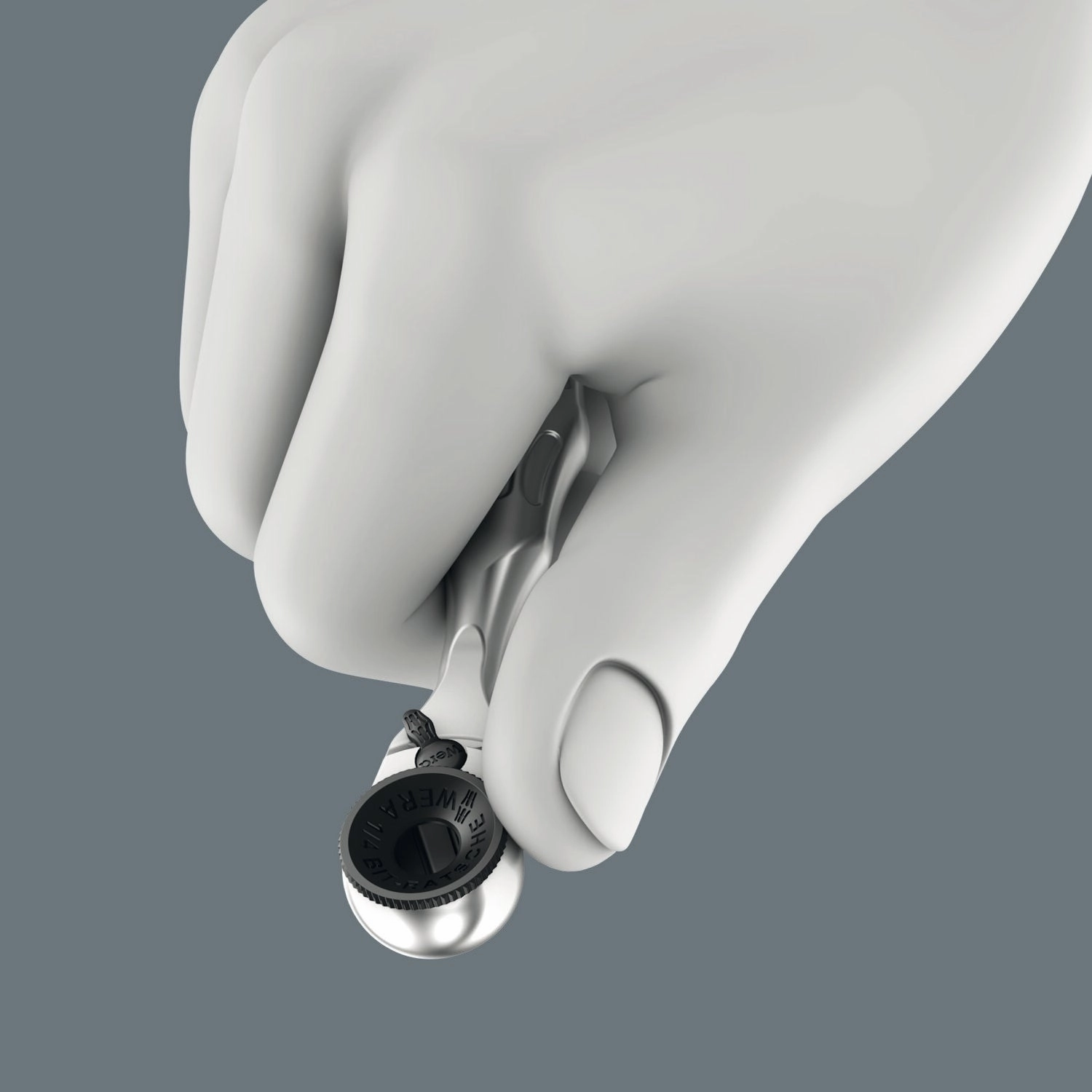

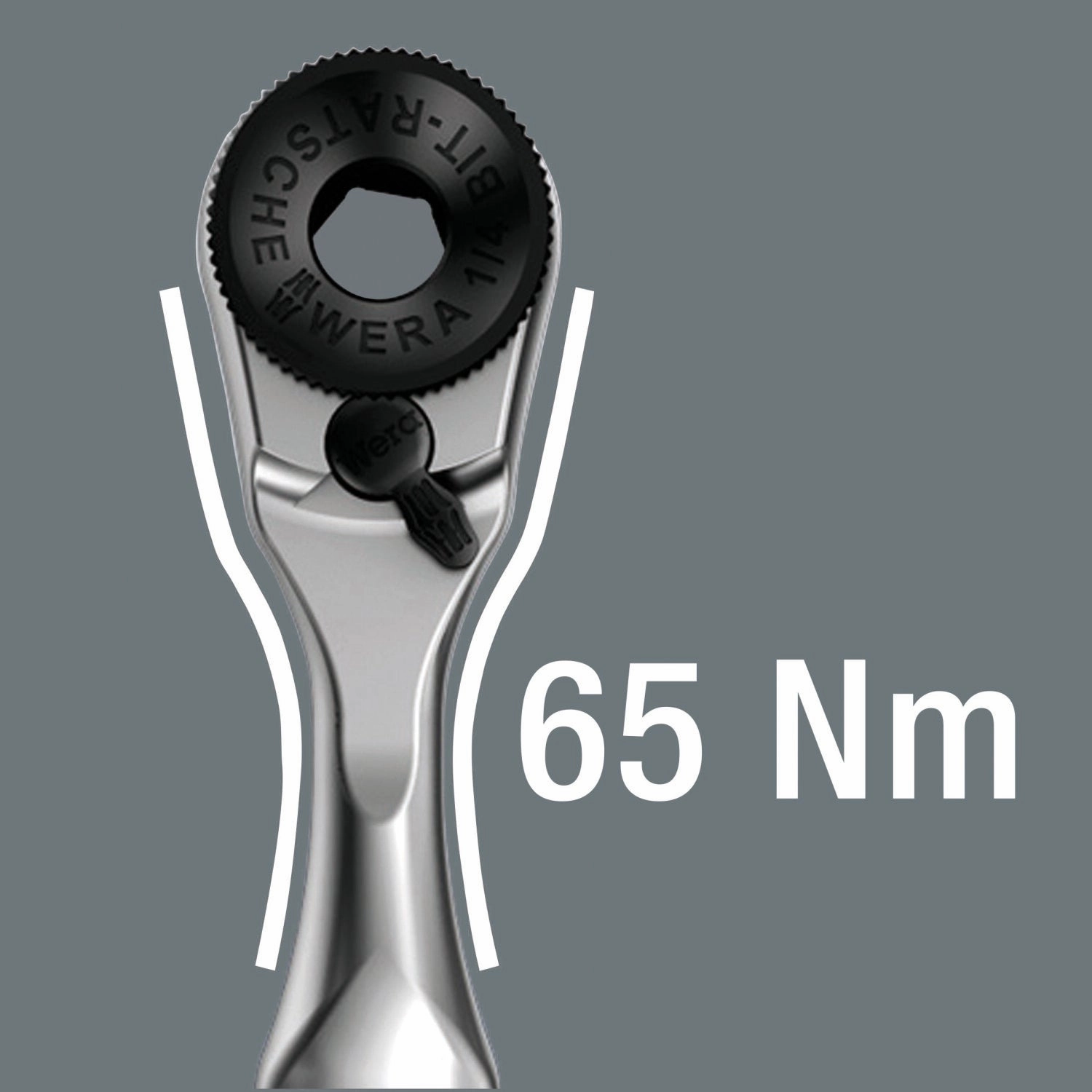

8001 A Bit Ratchet: 1/4" x 87 mm
889/4/1 K Rapidaptor Universal Bit Holder: 1/4" x 50 mm
870/1 Adaptor: 1/4" x 25 mm
813 Bitholding screwdriver: 1/4" x 78 mm
851/1 BTZ bits:
PH3 x 25 mm
(3) PH2 x 25 mm
(2) PH1 x 25 mm
867/1 BTZ TORX bits:
T10 x 25 mm
T15 x 25 mm
T20 x 25 mm
T25 x 25 mm
T30 x 25 mm
T40 x 25 mm
867/1 Z TORX BO bits with bore hole:
T10 x 25 mm
T15 x 25 mm
T20 x 25 mm
T25 x 25 mm
T30 x 25 mm
800/1 BTZ bits:
1 x 5.5 x 25 mm
840/1 BTZ bits:
3 x 25 mm
4 x 25 mm
5 x 25 mm
6 x 25 mm
840/1 Z bits:
8 x 25 mm
868/1 Z Square-Plus bits:
#1 x 25 mm
(3) #2 x 25 mm
#3 x 25 mm

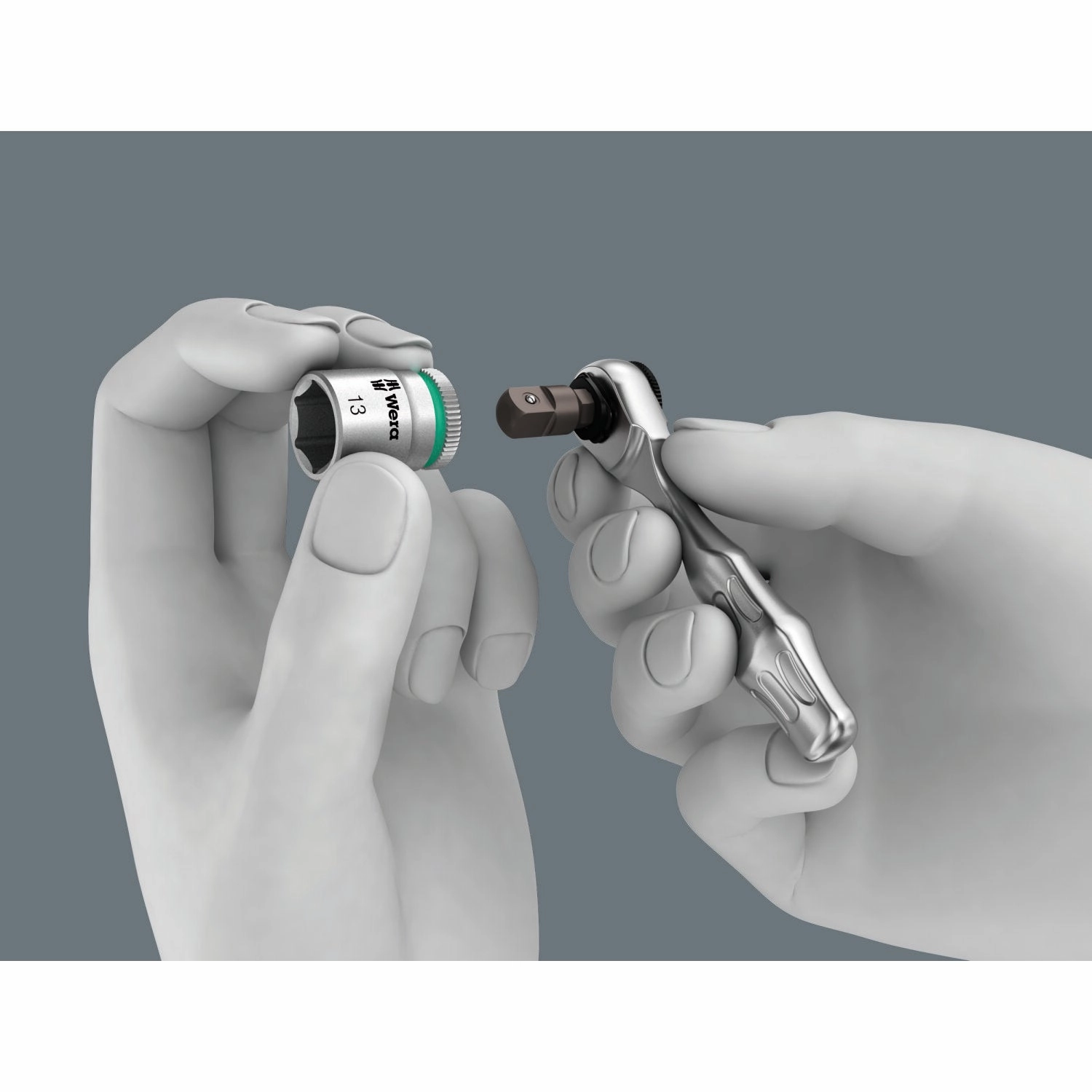

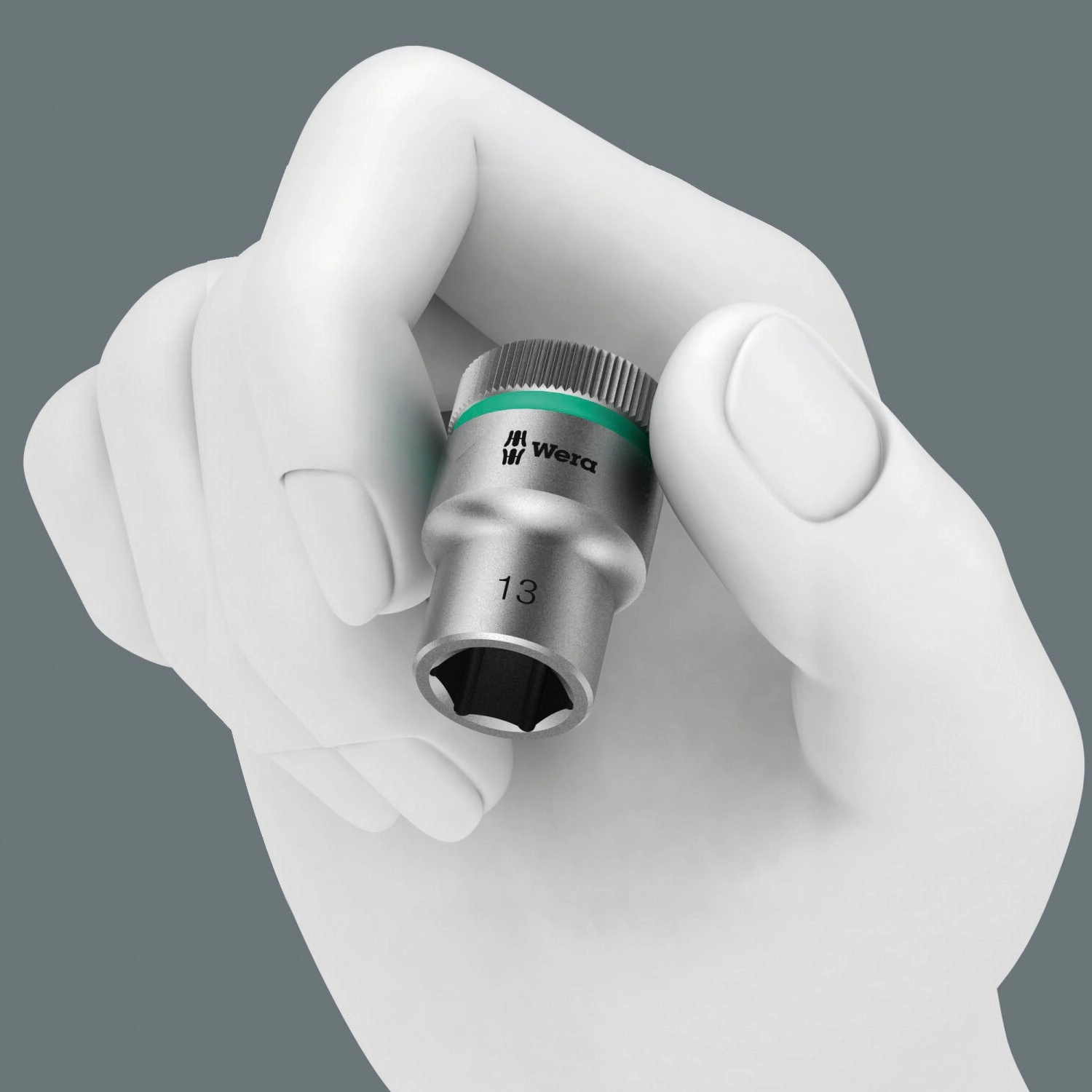

8790 HMA Zyklop 1/4" socket:
5.5 x 23 mm
6 x 23 mm
7 x 23 mm
8 x 23 mm
10 x 23 mm
12 x 23 mm
13 x 23 mm
889/4/1 K Rapidaptor Universal Bit Holder: 1/4" x 50 mm
870/1 Adaptor: 1/4" x 25 mm
813 Bitholding screwdriver: 1/4" x 78 mm
851/1 BTZ bits:
PH3 x 25 mm
(3) PH2 x 25 mm
(2) PH1 x 25 mm
867/1 BTZ TORX bits:
T10 x 25 mm
T15 x 25 mm
T20 x 25 mm
T25 x 25 mm
T30 x 25 mm
T40 x 25 mm
867/1 Z TORX BO bits with bore hole:
T10 x 25 mm
T15 x 25 mm
T20 x 25 mm
T25 x 25 mm
T30 x 25 mm
800/1 BTZ bits:
1 x 5.5 x 25 mm
840/1 BTZ bits:
3 x 25 mm
4 x 25 mm
5 x 25 mm
6 x 25 mm
840/1 Z bits:
8 x 25 mm
868/1 Z Square-Plus bits:
#1 x 25 mm
(3) #2 x 25 mm
#3 x 25 mm
8790 HMA Zyklop 1/4" socket:
5.5 x 23 mm
6 x 23 mm
7 x 23 mm
8 x 23 mm
10 x 23 mm
12 x 23 mm
13 x 23 mm
Drive Connector Size
1/4"
